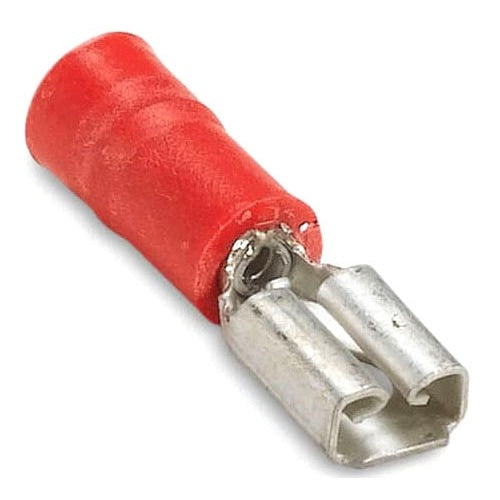

T&B 18RAD-182 22-18 Insulated Female Disconnect

Overview

T&B 18RAD-182 22-18 Insulated Female Disconnect

Product Specifications

• UPC: 78621081872
• Standard Package: 100
• Approval: UL, CSA
• Additional Information: Overall Dimension 0.85 Inch L x 0.23 Inch W; Material Electro Tin Plated Brass
• Catalog Number: 18RAD-182
• Model: 187
• Tab Size: 0.187 Inch x 0.02 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Red
• Insulation Type: Vinyl Insulated
• Temperature Rating: 105 Deg C
• Catalog Description: VINYL-INSULATED FEMALE DISCONNECT, LENGTH .85 INCHES, WIDTH .23 INCHES, MAXIMUM INSULATION .150, TAB SIZE .187X.020 WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 100 Standard Package; Vinyl Insulated Insulation Type; 0.187 Inch X 0.02 Inch Tab Size; Overall Dimension 0.85 Inch L X 0.23 Inch W; Material Electro Tin Plated Brass; 187 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Female Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210818726
• SKU Name: t&b 18rad182
