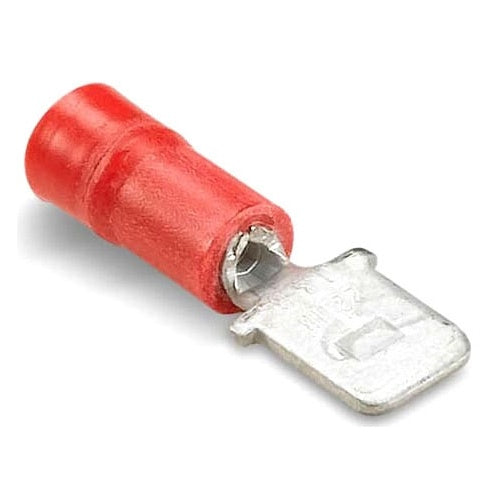

T&B 18RAD-188 22-18 Insulated Male Disconnect

Overview

T&B 18RAD-188 22-18 Insulated Male Disconnect

Product Specifications

• UPC: 78621082886
• Temperature Rating: 105 Deg C
• Standard Package: 100 per Pack
• Approval: UL, CSA
• Additional Information: Length 0.87 Inch; Voltage Rating 600 Volt; Insulation Diameter 0.15 Inch; Material Electro Tin Plated Brass
• Catalog Number: 18RAD-188
• Model: 187
• Type: Tab Style, Barrel Entry
• Tab Size: 0.187 Inch x 0.02 Inch
• Minimum Conductor Size: 22 AWG
• Maximum Conductor Size: 18 AWG
• Color: Red
• Insulation Type: Vinyl Insulated
• Catalog Description: VINYL-INSULATED MALE TAB, LENGTH .87 INCHES, MAXIMUM INSULATED .150, TAB SIZE .187X.020, WIRE RANGE #22-#18 AWG, COLOR RED, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Tab Style, Barrel Entry Type; Red Color; 22 AWG min. Conductor Size; 18 AWG Max. Conductor Size; UL, CSA Approval; 105 Deg C Temperature Rating; 100 Per Pack Standard Package; Vinyl Insulated Insulation Type; 0.187 Inch X 0.02 Inch Tab Size; Length 0.87 Inch; Voltage Rating 600 Volt; Insulation Diameter 0.15 Inch; Material Electro Tin Plated Brass; 187 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Male Disconnect
• Unspsc: 39121447
• UPC 12 Digit: 786210828862
• SKU Name: t&b 18rad188
