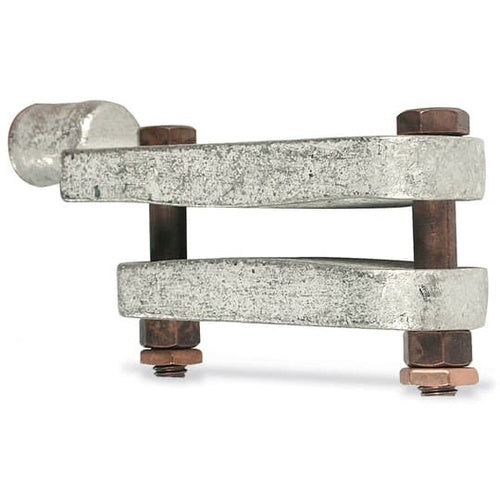

T&B 251-31446-12 Busbar Tap Str Barrel 4" 750 500 Purple

Overview

T&B 251-31446-12 Busbar Tap Str Barrel 4" 750 500 Purple

Product Specifications

• UPC: 78621077573
• Finish: ELECTRO TIN PLATED
• Catalog Number: 251-31446-12
• Brand Name: Color-Keyed.
• Voltage Rating: 600 V TO 35 KV
• Conductor Size: 750 KCMIL (CODE), 500 KCMIL (FLEX), 1325/24 (FLEX)
• Busbar Size: 4 INCH W X 1/2 INCH THK
• Bolt Size: 3/8 INCH
• Die Index: 112H
• Material: CAST COPPER ALLOY
• Catalog Description: BUS-BAR TAP - STRAIGHT BARREL ANGLE FOR BUSBAR WIDTH 4, WIRE RANGE 750 KCMIL 500, 1325/24 FLEX, 600V TO 35KV, DIE COLOR PURPLE
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Alloy Material; Electro Tin Plated Finish; 600 V to 35 kV Voltage Rating; 750 kcmil (Code), 500 kcmil (Flex), 1325/24 (Flex) Conductor Size; 3/8 Inch Bolt Size; 112H Die Index; 4 Inch W X 1/2 Inch Thk Busbar Size; Color-Keyed. Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Busbar Tap
• Unspsc: 39121117
• UPC 12 Digit: 786210775739
• SKU Name: t&b 2513144612

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
