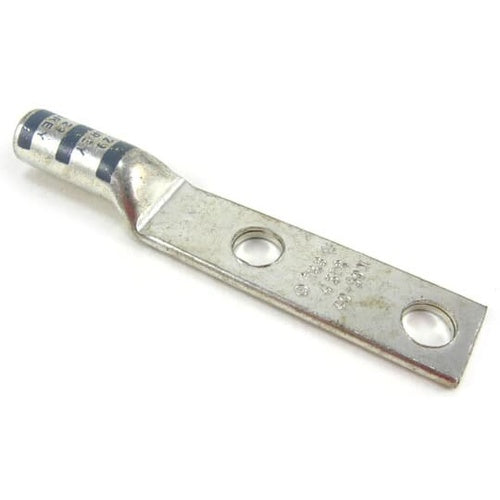

T&B 256-30695-733 Copper Tin Plated 2-Hole Lug Long Barrel No4 1/2B Gray

Overview

T&B 256-30695-733 Copper Tin Plated 2-Hole Lug Long Barrel No4 1/2B Gray

Product Specifications

• UPC: 78621019982
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1/2 Inch
• Stud Size: 1/2 Inch
• Color: Gray
• Die Index: 29
• Material: Electro Tin Plated Wrought Copper
• Overall Length: 4.13 Inch
• Approval: UL, CSA
• Catalog Number: 256-30695-733
• Brand Name: Color-Keyed
• Model: 256-30695
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 4 AWG (Code), 4 AWG (Weld, Flex), 5 AWG (Flex), 91/24 (Flex), 36.7 KCMIL, 40 to 50 (Navy, Flex)
• Barrel Type: Long, Straight
• Pad Size: 2.88 Inch Length x 0.75 Inch Width x 0.09 Inch Thickness
• Catalog Description: COPPER TWO-HOLE LUG, LONG BARREL, BLIND END, MAX 35KV, WIRE SIZE #4 AWG, 1/2 INCH BOLT SIZE, 1-3/4 INCH HOLE SPACING, TIN PLATED, DIE COLOR CODE GRAY, DIE CODE 29
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Wrought Copper Material; Gray Color; 4.13 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 4 AWG (Code), 4 AWG (Weld, Flex), 5 AWG (Flex), 91/24 (Flex), 36.7 kcmil, 40 to 50 (Navy, Flex) Conductor Size; 1/2 Inch Stud Size; 29 Die Index; 2.88 Inch Length X 0.75 Inch Width X 0.09 Inch Thickness Pad Size; 2 Pad Hole(S); 1/2 Inch Pad Hole Spacing; Long, Straight Barrel Type; 256-30695 Model
• Manufacturer: THOMAS & BETTS
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210199825
• SKU Name: t&b 25630695733
