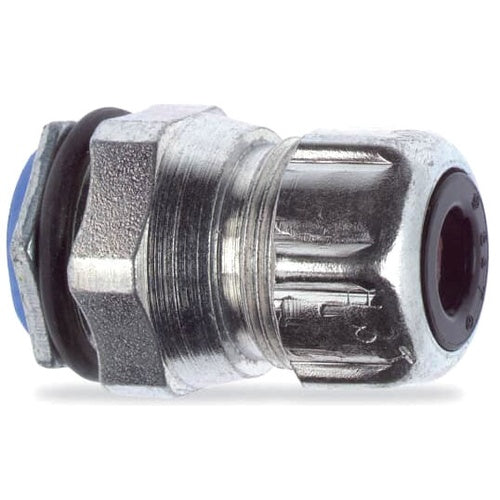

T&B 2634 1/2" Straight Liquidtight Chase Connector .450-.560

Overview

T&B 2634 1/2" Straight Liquidtight Chase Connector .450-.560

Product Specifications

• UPC: 78621002634
• Application: Hazardous Location
• Additional Information: Construction Feature Liquidtight, Strain Relief; Operating Temperature 105 Deg C
• Catalog Number: 2634
• Brand Name: CHASE[R]
• Type: Straight
• Thread Size: 1/2 Inch
• Material: Nylon Throat, Neoprene Bushing
• Cord Size: 0.45 to 0.56 Inch
• Size: 1-1/16 Inch Dia x 1-5/8 Inch L
• Approval: UL, CSA
• Catalog Description: CHASE LIQUIDTIGHT STEEL CORD CONNECTOR, STRAIGHT, 1/2 INCH, CORD RANGE 0.450 TO 0.560 INCH
• Category: Cable & Cord Grips
• Full Technical Description: Straight Type; Nylon Throat, Neoprene Bushing Material; 1-1/16 Inch Dia X 1-5/8 Inch L Size; UL, CSA Approval; Hazardous Location Application; 1/2 Inch Thread Size; 0.45 to 0.56 Inch Cord Size; Construction Feature Liquidtight, Strain Relief; Operating Temperature 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210026343
• SKU Name: t&b 2634

Resources

• Manufacturer Spec Sheet
