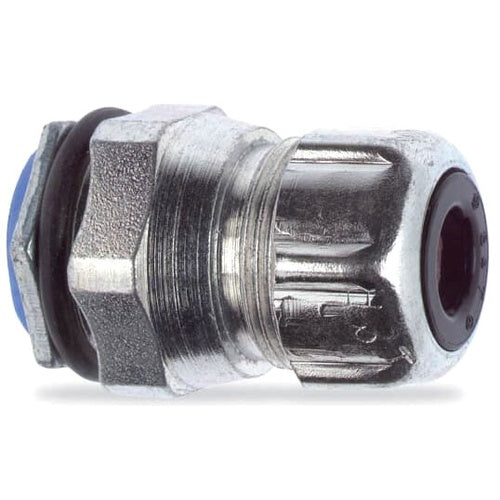

T&B 2649 1" Straight Liquidtight Chase Connector .880-.985

Overview

T&B 2649 1" Straight Liquidtight Chase Connector .880-.985

Product Specifications

• UPC: 78621002649
• Application: HAZARDOUS LOCATION
• Additional Information: CONSTRUCTION FEATURE LIQUIDTIGHT, STRAIN RELIEF; OPERATING TEMPERATURE 105 DEG C
• Catalog Number: 2649
• Brand Name: CHASE
• Type: STRAIGHT
• Thread Size: 1 INCH
• Material: NYLON THROAT, NEOPRENE BUSHING
• Cord Size: 0.885 TO 0.985 INCH
• Size: 1-5/8 INCH DIA X 1-13/16 INCH L
• Approval: UL, CSA
• Catalog Description: CHASE LIQUIDTIGHT CORD CONNECTOR, 1 INCH, STRAIGHT, STEEL BODY AND GLAND, NEOPRENE BUSHING, CORD RANGE 0.880 TO 0.985 INCH, THROAT DIAMETER 1 INCH, METALLIC
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Nylon Throat, Neoprene Bushing Material; 1-5/8 Inch Dia X 1-13/16 Inch L Size; UL, CSA Approval; Hazardous Location Application; 1 Inch Thread Size; 0.885 to 0.985 Inch Cord Size; Construction Feature Liquidtight, Strain Relief; Operating Temperature 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210026497
• SKU Name: t&b 2649

Resources

• Product Spec Sheet
