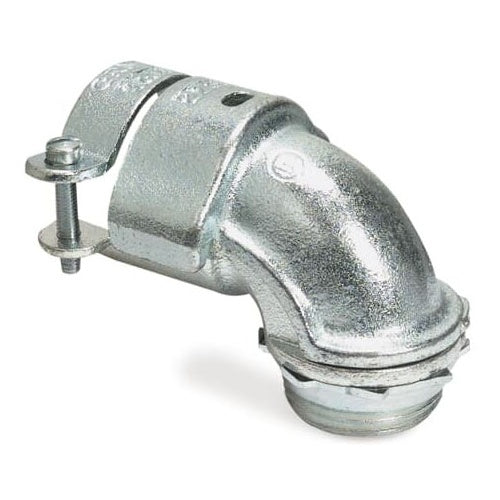

T&B 275 1-1/2" 90 Squeeze Connector

Overview

T&B 275 1-1/2" 90 Squeeze Connector

Product Specifications

• UPC: 78621000275
• Installation: Squeeze
• Throat Type: Non-Insulated
• Material: Zinc Plated Malleable Iron
• Standard Package: 10
• Approval: UL, CSA
• Catalog Number: 275
• Type: 90 Deg
• Trade Size: 1-1/2 Inch
• Knockout Size: 1-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 1.625 to 0.875 Inch
• Length: 4-1/8 Inch
• Catalog Description: SQUEEZE CONNECTOR, 90 DEGREE BEND, TRADE SIZE 1-1/2 INCH, KNOCKOUT SIZE 1-1/2 INCH, CABLE RANGE 1.625 TO 1.875 INCH, MALLEABLE IRON
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Deg Type; Zinc Plated Malleable Iron Material; 4-1/8 Inch; Squeeze Installation; UL, CSA Approval; 10 Standard Package; 1-1/2 Inch Trade Size; 1-1/2 Inch Knockout Size; 1.625 to 0.875 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210002750
• SKU Name: t&b 275

Resources

• Manufacturer Spec Sheet
