T&B 2940AL 1" Ranger Aluminum Cord Connector .310-.560

Overview

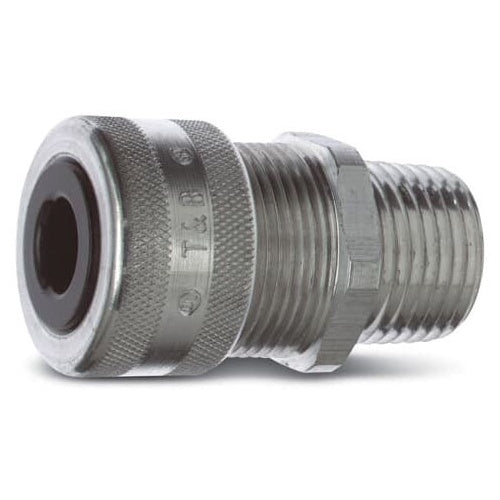

T&B 2940AL 1" Ranger Aluminum Cord Connector .310-.560

Product Specifications

• UPC: 78621079719
• Application: Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair
• Additional Information: Operating Temperature -20 to 105 Deg C
• Catalog Number: 2940AL
• Brand Name: Ranger[R]
• Type: Straight, Strain Relief
• Thread Size: 1 Inch
• Material: Copper-Free Aluminum (Body/Gland Nut/Grip), Thermoplastic Rubber (Bushing), Nylon (Grip Ring)
• Cord Size: 0.31 to 0.56 Inch
• Size: 1-5/16 Inch Diameter x 1-3/4 Inch Length
• Approval: UL E13938, CSA 52391
• Catalog Description: LIQUIDTIGHT STRAIN RELIEF CONNECTOR, 1 INCH, STRAIGHT, CORD RANGE 0.310 TO 0.560 INCH, THROAT DIAMETER 9/16 INCH, ALUMINUM BODY, GLANDNUT, AND GRIP, RUBBER BUSHING
• Category: Cable & Cord Grips
• Full Technical Description: Straight, Strain Relief Type; Copper-Free Aluminum (Body/Gland Nut/Grip), Thermoplastic Rubber (Bushing), Nylon (Grip Ring) Material; 1-5/16 Inch Diameter X 1-3/4 Inch Length Size; UL E13938, CSA 52391 Approval; Dry and Wet Location, General Purpose, Machine Building, Maintenance and Repair Application; 1 Inch Thread Size; 0.31 to 0.56 Inch Cord Size; RANGER[R] Brand; Operating Temperature -20 to 105 Deg C
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 786210797199
• SKU Name: t&b 2940al

Resources

• Manufacturer Spec Sheet
• Technical Drawing
