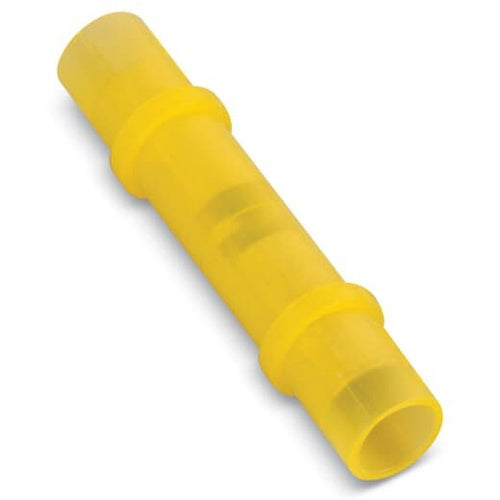

T&B 2RCC Insulated Nylon Aircraft Splice 12-10 Awg

Overview

T&B 2RCC Insulated Nylon Aircraft Splice 12-10 Awg

Product Specifications

• UPC: 78621080023
• Color: Yellow
• Material: Electro Tin Plated Copper
• Temperature Rating: 105 Deg C
• Standard Package: 25
• Approval: UL 94, CSA
• Additional Information: Applicable Standard MIL-T-7928
• Catalog Number: 2RCC
• Model: RCC
• Type: Butt
• Voltage Rating: 600 V
• Length: 1.54 Inch
• Barrel Outer Diameter: 0.35 Inch
• Conductor Size: 12 to 10 AWG
• Insulation Type: Nylon Insulated
• Catalog Description: NYLON-INSULATED AIRCRAFT SPLICE, LENGTH 1.54 INCHES, WIDTH .35 INCHES, WIRE RANGE #12-#10 AWG, COLOR YELLOW, COPPER, TIN PLATED
• Category: Small Terminals & Connectors
• Full Technical Description: Butt Type; Electro Tin Plated Copper Material; Yellow Color; 1.54 Inch; UL 94, CSA Approval; 600 V Voltage Rating; 105 Deg C Temperature Rating; 25 Standard Package; 12 to 10 AWG Conductor Size; Nylon Insulated Insulation Type; 0.35 Inch Barrel Outer Diameter; Applicable Standard mil-T-7928; RCC Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Splice Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210800233
• SKU Name: t&b 2rcc
