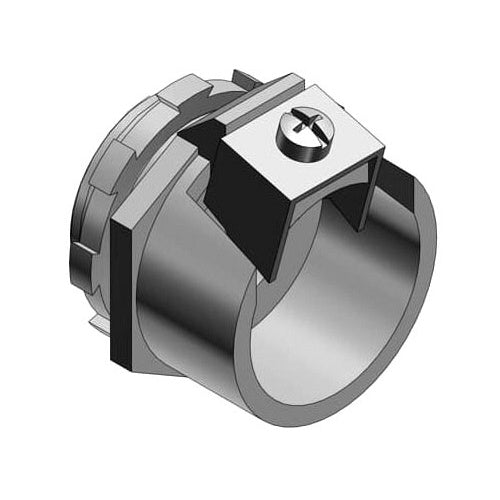

T&B 302-TB 1/2" Straight Tite-Bite Connector Non-Insulated

Overview

T&B 302-TB 1/2" Straight Tite-Bite Connector Non-Insulated

Product Specifications

• UPC: 78621000302
• Installation: Saddle
• Throat Type: Insulated
• Material: Electro Zinc Plated Steel
• Standard Package: 100 per Outer Pack
• Approval: UL, CSA
• Additional Information: Color Metallic
• Catalog Number: 302-TB
• Brand Name: T&B
• Type: Straight
• Trade Size: 1/2 Inch
• Knockout Size: 1/2 Inch
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 0.67 to 0.92 Inch
• Length: 1-11/16 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, STRAIGHT, TRADE SIZE 1/8 INCH, KNOCKOUT SIZE 1/2 INCH, CABLE RANGE 0.670 TO 0.920 INCH, STEEL WITH ZINC PLATING
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Steel Material; 1-11/16 Inch; Saddle Installation; UL, CSA Approval; 100 Per Outer Pack Standard Package; 1/2 Inch Trade Size; 1/2 Inch Knockout Size; 0.67 to 0.92 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Conduit; TITE-BITE[R] Brand; Color Metallic
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210003023
• SKU Name: t&b 302tb

Resources

• Manufacturer Spec Sheet
