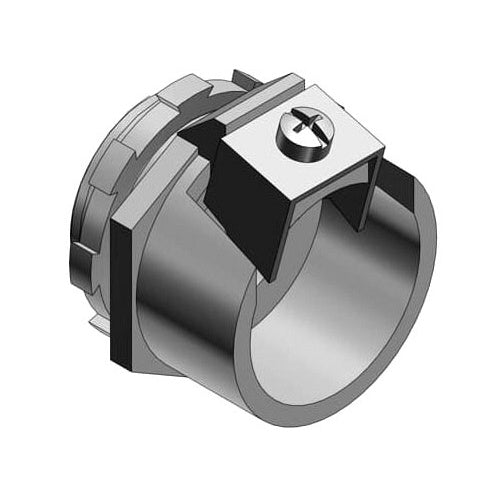

T&B 304 3/4" Str. Tite-Bite Connector Non-Insulated

Overview

T&B 304 3/4" Str. Tite-Bite Connector Non-Insulated

Product Specifications

• UPC: 78621000304
• Length: 1-11/16 Inch
• Installation: (1) Screw, Saddle
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Steel
• Standard Package: 100 per Outer Pack
• Approval: UL, CSA
• Additional Information: Color Metallic; Width 1-7/8 Inch
• Catalog Number: 304
• Brand Name: T&B
• Type: Straight
• Trade Size: 3/4 Inch
• Knockout Size: 3/4 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored/Metal Clad Cable Connector
• Cord Size: 0.906 to 1.093 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, STRAIGHT, TRADE SIZE 3/4 INCH, KNOCKOUT SIZE 3/4 INCH, CABLE RANGE 0.906 TO 1.093 INCH, MALLEABLE IRON WITH ZINC PLATING
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Steel Material; 1-11/16 Inch; (1) Screw, Saddle Installation; UL, CSA Approval; 100 Per Outer Pack Standard Package; 3/4 Inch Trade Size; 3/4 Inch Knockout Size; 0.906 to 1.093 Inch Cord Size; Non-Insulated Throat Type; Armored/Metal Clad Cable Connector; Single Cable Opening; Tite-Bite [R] Brand; Color Metallic; Width 1-7/8 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210003047
• SKU Name: t&b 304

Resources

• Manufacturer Spec Sheet
