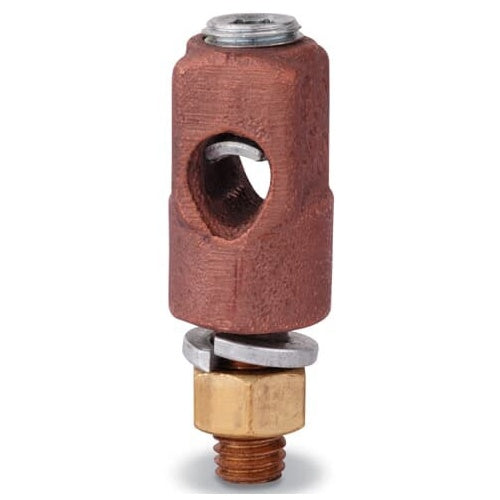

T&B 31007T Locktite Copper Male Stud Connector 4-1

Overview

T&B 31007T Locktite Copper Male Stud Connector 4-1

Product Specifications

• UPC: 78621080731
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 V
• Catalog Number: 31007T
• Brand Name: LOCKTITE[R]
• Model: MS
• Minimum Conductor Size: 4 AWG
• Maximum Conductor Size: 1 AWG
• Material: Copper
• Stud Size: 3/8 Inch-16 TPI
• Size: 7/8 Inch W x 2.125 Inch H
• Catalog Description: LOCKTITE COPPER MALE STUD CONNECTOR FOR CONDUCTOR RANGE 4-1 AWG
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 7/8 Inch W X 2.125 Inch H Size; 4 AWG min. Conductor Size; 1 AWG Max. Conductor Size; UL, CSA Approval; 3/8 Inch-16 TPI Stud Size; LOCKTITE[R] Brand; Voltage Rating 600 V; MS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Stud Connector
• Unspsc: 39121408
• UPC 12 Digit: 786210807317
• SKU Name: t&b 31007t

Resources

• Manufacturer Spec Sheet
