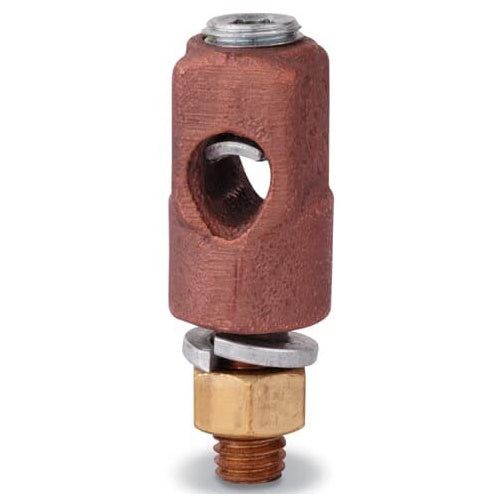

T&B 31011T Locktite Copper Male Stud Connector 2/0-4/0

Overview

T&B 31011T Locktite Copper Male Stud Connector 2/0-4/0

Product Specifications

• UPC: 78621080738
• Approval: UL, CSA
• Additional Information: Voltage Rating 600 V
• Catalog Number: 31011T
• Brand Name: LOCKTITE[R]
• Model: MS
• Minimum Conductor Size: 2/0 AWG
• Maximum Conductor Size: 4/0 AWG
• Material: Copper
• Stud Size: 1/2 Inch-13 TPI
• Size: 1-3/16 Inch W x 2-5/8 Inch H
• Catalog Description: LOCKTITE COPPER MALE STUD CONNECTOR FOR CONDUCTOR RANGE 2/0 TO 4/0
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 1-3/16 Inch W X 2-5/8 Inch H Size; 2/0 AWG min. Conductor Size; 4/0 AWG Max. Conductor Size; UL, CSA Approval; 1/2 Inch-13 TPI Stud Size; LOCKTITE[R] Brand; Voltage Rating 600 V; MS Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Stud Connector
• Unspsc: 39121408
• UPC 12 Digit: 786210807386
• SKU Name: t&b 31011t

Resources

• Manufacturer Spec Sheet
