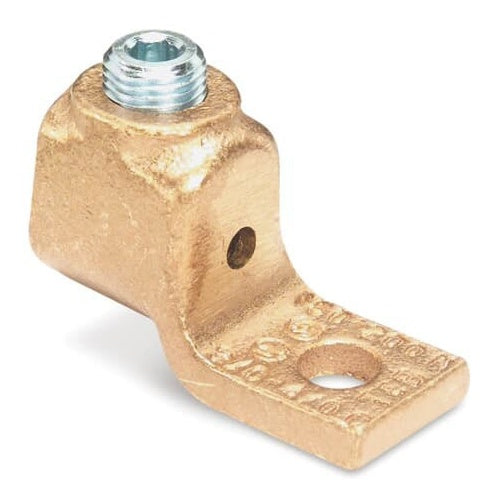

T&B 31013 Locktite Copper 1-Hole Lug 4/0-300

Overview

T&B 31013 Locktite Copper 1-Hole Lug 4/0-300

Product Specifications

• UPC: 78621031013
• Pad Size: 1-1/2 Inch Length x 5/16 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 2-3/4 Inch
• Approval: UL, CSA
• Additional Information: Overall Height 1-17/32 Inch
• Catalog Number: 31013
• Brand Name: Locktite[R]
• Minimum Conductor Size: 4/0 AWG
• Maximum Conductor Size: 300 KCMIL
• Conductor Material: Copper
• Screw Type: Hex Socket
• Material: Copper
• Number Of Pad Holes: 1
• Catalog Description: LOCKTITE COPPER ONE-HOLE LUG FOR CONDUCTOR RANGE 4/0 AWG - 300 KCMIL OR 250 - 300 NAVY. LENGTH 2-3/4 INCH, WIDTH 1-3/16 INCH, PAD THICKNESS 5/16 INCH. PAD LENGTH 1-1/2 INCH. BOLT SIZE 1/2 INCH, HEIGHT 1-17/32 INCH.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 2-3/4 Inch Overall Length; 4/0 AWG min. Conductor Size; 300 kcmil Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1/2 Inch Stud Size; 1-1/2 Inch Length X 5/16 Inch Thickness Pad Size; 1 Pad Hole(S); Hex Socket Screw Type; LOCKTITE[R] Brand; Overall Height 1-17/32 Inch
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210310138
• SKU Name: t&b 31013
