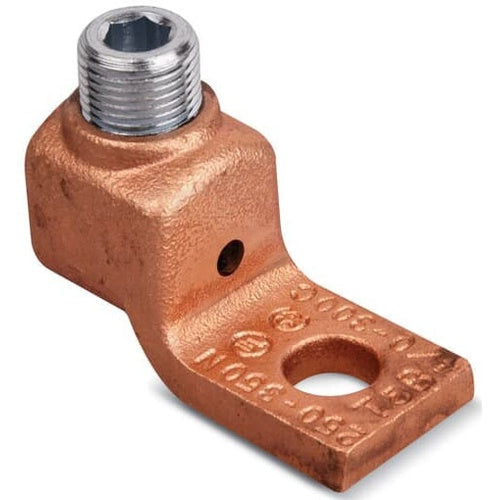

T&B 31015 Locktite Copper 1-Hole Lug 300-500

Overview

T&B 31015 Locktite Copper 1-Hole Lug 300-500

Product Specifications

• UPC: 78621031015
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 1-11/16 Inch Length x 1-3/8 Inch Width x 11/32 Inch Thickness
• Stud Size: 1/2 Inch
• Overall Length: 3-1/16 Inch
• Approval: UL, CSA
• Catalog Number: 31015
• Brand Name: LOCKTITE[R]
• Number Of Conductors: 1
• Minimum Conductor Size: 300 KCMIL
• Maximum Conductor Size: 500 KCMIL
• Conductor Material: Copper
• Pad Type: Straight
• Screw Type: Hex Socket
• Catalog Description: LOCKTITE COPPER ONE-HOLE LUG FOR CONDUCTOR RANGE 300 - 500 KCMIL OR 400 - 500 NAVY. LENGTH 3-1/16 INCH, WIDTH 1-3/8 INCH, PAD THICKNESS 11/32 INCH. PAD LENGTH 1-11/16 INCH. BOLT SIZE 1/2 INCH, HEIGHT 1-13/16 INCH.
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 3-1/16 Inch Overall Length; 300 kcmil min. Conductor Size; 500 kcmil Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 1-11/16 Inch Length X 1-3/8 Inch Width X 11/32 Inch Thickness Pad Size; 1 Pad Hole(S); Straight Pad Type; Hex Socket Screw Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210310152
• SKU Name: t&b 31015
