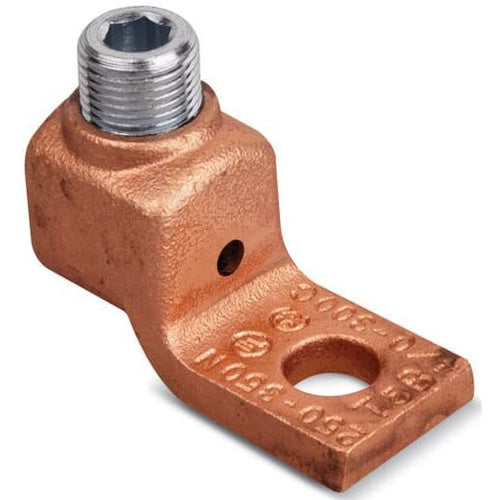

T&B 31019 Locktite Copper 1-Hole Lug 750-1000 5/8B

Overview

T&B 31019 Locktite Copper 1-Hole Lug 750-1000 5/8B

Product Specifications

• UPC: 78621031019
• Screw Type: HEX SOCKET
• Number Of Pad Holes: 1
• Pad Size: 2-15/32 INCH L X 1-7/8 INCH W X 15/32 INCH THK
• Stud Size: 5/8 INCH
• Overall Length: 4-5/16 INCH
• Approval: UL, CSA
• Catalog Number: 31019
• Brand Name: LOCKTITE[R]
• Model: 31
• Type: STANDARD SADDLE
• Number Of Conductors: 1
• Minimum Conductor Size: 750 MCM
• Maximum Conductor Size: 1000 MCM
• Conductor Material: COPPER
• Catalog Description: LOCKTITE COPPER ONE-HOLE LUG FOR CONDUCTOR RANGE 750 - 1000 KCMIL AWG OR 1000 NAVY. LENGTH 4-5/16 INCH, WIDTH 1-7/8 INCH, PAD THICKNESS 13/32 INCH. PAD LENGTH 2-15/32 INCH. BOLT SIZE 5/8 INCH, HEIGHT 2-11/32 INCH.
• Category: Large Terminals & Connectors
• Full Technical Description: Standard Saddle Type; 4-5/16 Inch Overall Length; 750 MCM min. Conductor Size; 1000 MCM Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 5/8 Inch Stud Size; 2-15/32 Inch L X 1-7/8 Inch W X 15/32 Inch Thk Pad Size; 1 Pad Hole(S); Hex Socket Screw Type; LOCKTITE[R] Brand; 31 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210310190
• SKU Name: t&b 31019
