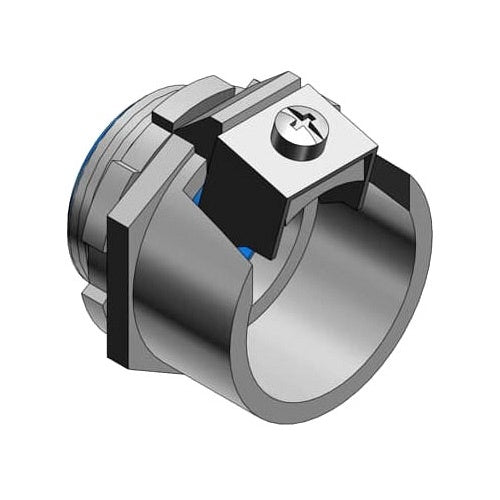

T&B 3117 1" Insulated Tite-Bite Connector

Overview

T&B 3117 1" Insulated Tite-Bite Connector

Product Specifications

• UPC: 78621003117
• Length: 1-3/4 Inch
• Installation: (1) Screw, Saddle
• Throat Type: Insulated
• Material: Electro Zinc Plated Steel
• Standard Package: 25 per Outer Pack
• Approval: UL, CSA
• Additional Information: Color Metallic; Width 2-3/8 Inch
• Catalog Number: 3117
• Brand Name: T&B
• Type: Straight
• Trade Size: 1 Inch
• Knockout Size: 1 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored/Metal Clad Cable Connector
• Cord Size: 1.25 to 1.468 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, STRAIGHT, TRADE SIZE 1 INCH, KNOCKOUT SIZE 1 INCH, CABLE RANGE 1.250 TO 1.468 INCH, MALLEABLE IRON WITH ZINC PLATING, NYLON INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Steel Material; 1-3/4 Inch; (1) Screw, Saddle Installation; UL, CSA Approval; 25 Per Outer Pack Standard Package; 1 Inch Trade Size; 1 Inch Knockout Size; 1.25 to 1.468 Inch Cord Size; Insulated Throat Type; Armored/Metal Clad Cable Connector; Single Cable Opening; Tite-Bite [R] Brand; Color Metallic; Width 2-3/8 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210031170
• SKU Name: t&b 3117

Resources

• Manufacturer Spec Sheet
