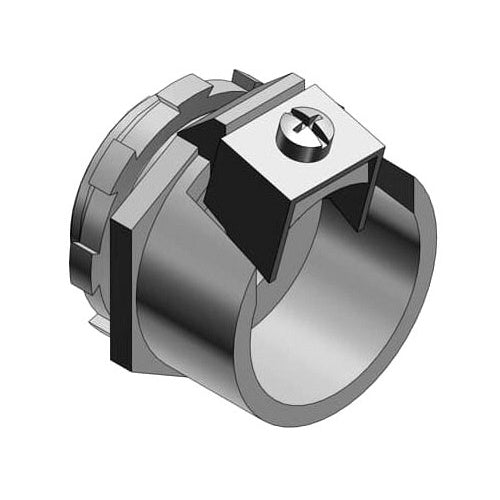

T&B 312 2" Straight Tite-Bite Connector Non-Insulated

Overview

T&B 312 2" Straight Tite-Bite Connector Non-Insulated

Product Specifications

• UPC: 78621000312
• Length: 2-13/16 Inch
• Installation: (1) Screw, Saddle
• Throat Type: Non-Insulated
• Material: Electro Zinc Plated Steel
• Standard Package: 5 per Outer Pack
• Approval: UL, CSA
• Additional Information: Color Metallic; Width 3-1/8 Inch
• Catalog Number: 312
• Brand Name: T&B
• Type: Straight
• Trade Size: 2 Inch
• Knockout Size: 2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 2.312 to 2.5 Inch
• Catalog Description: 2 INCH. TITE-BITE CONNECTOR, MALLEABLE IRON-ELECTRO ZINC PLATED, INSULATOR-THERMOPLASTIC.
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Steel Material; 2-13/16 Inch; (1) Screw, Saddle Installation; UL, CSA Approval; 5 Per Outer Pack Standard Package; 2 Inch Trade Size; 2 Inch Knockout Size; 2.312 to 2.5 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; TITE-BITE[R] Brand; Color Metallic; Width 3-1/8 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210003122
• SKU Name: t&b 312
