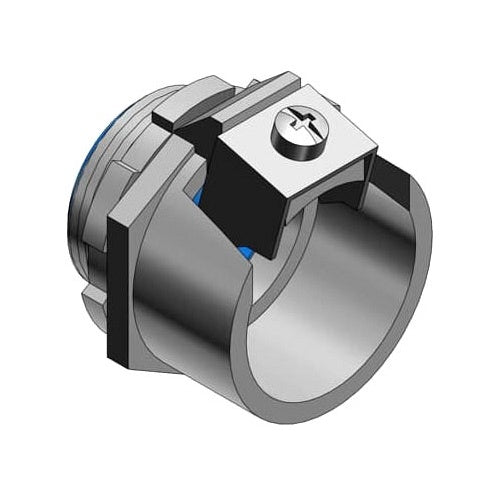

T&B 3123 3-1/2 Tite-Bite Connector, Insulated

Overview

T&B 3123 3-1/2 Tite-Bite Connector, Insulated

Product Specifications

• UPC: 78621003123
• Installation: Saddle
• Throat Type: Insulated
• Material: Electro Zinc Plated Malleable Iron
• Standard Package: 1
• Approval: UL
• Additional Information: Insulator Material Thermoplastic
• Catalog Number: 3123
• Brand Name: TITE-BITE[R]
• Type: Straight
• Trade Size: 3-1/2 Inch
• Knockout Size: 3-1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 3.62 to 4.06 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, STRAIGHT, TRADE SIZE 3-1/2 INCH, KNOCKOUT SIZE 3-1/2 INCH, CABLE RANGE 3.620 TO 4.060 INCH, MALLEABLE IRON WITH ZINC PLATING, NYLON INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight Type; Electro Zinc Plated Malleable Iron Material; Saddle Installation; UL Approval; 1 Standard Package; 3-1/2 Inch Trade Size; 3-1/2 Inch Knockout Size; 3.62 to 4.06 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; TITE-BITE[R] Brand; Insulator Material Thermoplastic
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210031231
• SKU Name: t&b 3123

Resources

• Manufacturer Spec Sheet
