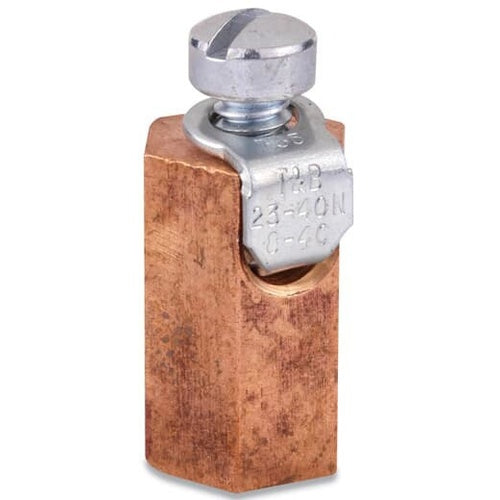

T&B 31267 Locktite Copper Female Stud Connector 2/0-4/0

Overview

T&B 31267 Locktite Copper Female Stud Connector 2/0-4/0

Product Specifications

• UPC: 78621031267
• Approval: UL, CSA
• Additional Information: Type Female; Used On Copper Conductor 600 Volt
• Catalog Number: 31267
• Brand Name: Blackburn
• Model: FL
• Minimum Conductor Size: 2/0 AWG
• Maximum Conductor Size: 4/0 AWG
• Material: Copper
• Stud Size: 1/2 Inch-13 TPI
• Size: 13/16 Inch Width x 2-3/16 Inch Height
• Catalog Description: LOCKTITE COPPER FEMALE STUD CONNECTOR FOR CONDUCTOR RANGE 2/0 TO 4/0
• Category: Large Terminals & Connectors
• Full Technical Description: Copper Material; 13/16 Inch Width X 2-3/16 Inch Height Size; 2/0 AWG min. Conductor Size; 4/0 AWG Max. Conductor Size; UL, CSA Approval; 1/2 Inch-13 TPI Stud Size; LOCKTITE[R] Brand; Type Female; Used on Copper Conductor 600 Volt; FL Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Stud Connector
• Unspsc: 39121408
• UPC 12 Digit: 786210312675
• SKU Name: t&b 31267

Resources

• Manufacturer Spec Sheet
