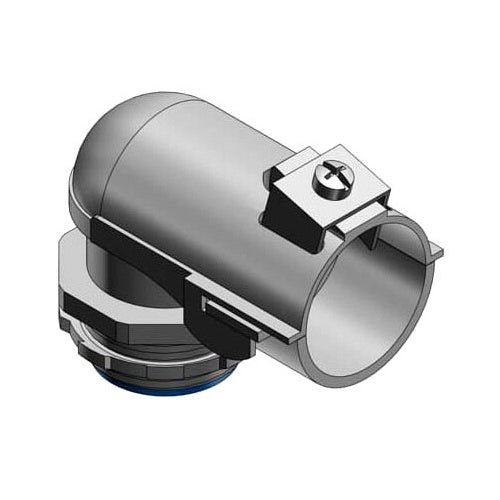

T&B 3132 1/2" Tite-Bite 90 Deg Insulated

Overview

T&B 3132 1/2" Tite-Bite 90 Deg Insulated

Product Specifications

• UPC: 78621003132
• Installation: (1) Screw, Narrow
• Throat Type: Insulated
• Material: Electro Zinc Plated Steel
• Standard Package: 100
• Approval: UL, CSA
• Additional Information: Color Metallic; Insulation Material Nylon
• Catalog Number: 3132
• Brand Name: TITE-BITE[R]
• Type: 90 Degree
• Trade Size: 1/2 Inch
• Knockout Size: 1/2 Inch
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flexible Conduit
• Cord Size: 0.67 to 0.92 Inch
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, 90 DEGREE BEND, TRADE SIZE 1/2 INCH, KNOCKOUT SIZE 1/2 INCH, CABLE RANGE 0.670 TO 0.920 INCH, STEEL WITH ZINC PLATING, NYLON INSULATED
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Electro Zinc Plated Steel Material; (1) Screw, Narrow Installation; UL, CSA Approval; 100 Standard Package; 1/2 Inch Trade Size; 1/2 Inch Knockout Size; 0.67 to 0.92 Inch Cord Size; Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; Tite-Bite [R] Brand; Color Metallic; Insulation Material Nylon
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210031323
• SKU Name: t&b 3132

Resources

• Manufacturer Spec Sheet
