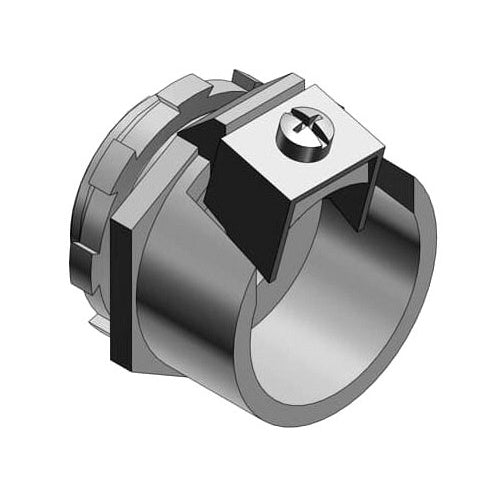

T&B 316 3 Tite-Bite Connector Non-Insulated

Overview

T&B 316 3 Tite-Bite Connector Non-Insulated

Product Specifications

• UPC: 78621000316
• Length: 3-3/16 INCH
• Installation: (1) SCREW, SADDLE
• Throat Type: NON-INSULATED
• Material: ELECTRO ZINC PLATED MALLEABLE IRON
• Standard Package: 5
• Approval: UL, CSA
• Catalog Number: 316
• Brand Name: TITE-BITE
• Type: STRAIGHT
• Trade Size: 3 INCH
• Knockout Size: 3 INCH
• Cable Opening: SINGLE
• Cable/Conduit Type: ARMORED CABLE/FLEXIBLE CONDUIT
• Cord Size: 3.312 TO 3.562 INCH
• Catalog Description: METAL-CLAD AND ARMORED CABLE FITTING, STRAIGHT, TRADE SIZE 3 INCH, KNOCKOUT SIZE 3 INCH, CABLE RANGE 3.312 TO 3.562 INCH, MALLEABLE IRON WITH ZINC PLATING
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Straight Type; Electro Zinc Plated Malleable Iron Material; 3-3/16 Inch; (1) Screw, Saddle Installation; UL, CSA Approval; 5 Standard Package; 3 Inch Trade Size; 3 Inch Knockout Size; 3.312 to 3.562 Inch Cord Size; Non-Insulated Throat Type; Armored Cable/Flexible Conduit; Single Cable Opening; TITE-BITE[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Armored Cable/Flex Conduit Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210003160
• SKU Name: t&b 316

Resources

• Product Spec Sheet
