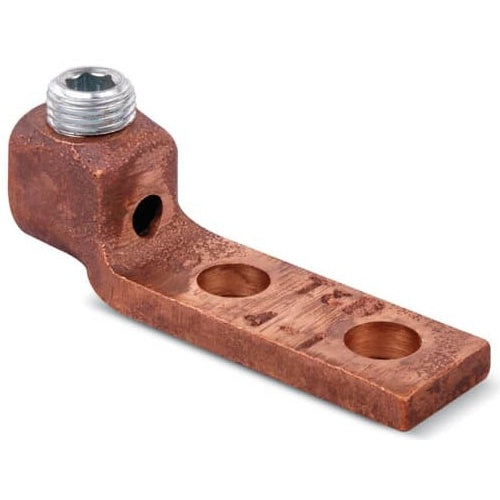

T&B 32013 Locktite Copper 2-Hole Lug 4/0-300

Overview

T&B 32013 Locktite Copper 2-Hole Lug 4/0-300

Product Specifications

• UPC: 78621032013
• Screw Type: Hex Head
• Material: Copper
• Number Of Pad Holes: 2
• Pad Size: 2-1/8 Inch L x 1-3/16 Inch W x 5/16 Inch Thk
• Stud Size: 3/8 Inch
• Overall Length: 3-3/8 Inch
• Approval: UL, CSA
• Catalog Number: 32013
• Brand Name: LOCKTITE[R]
• Type: Long Tongue
• Number Of Conductors: 1
• Minimum Conductor Size: 4/0 AWG
• Maximum Conductor Size: 300 KCMIL
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER TWO-HOLE LUG FOR CONDUCTOR RANGE 4/0 TO 300
• Category: Large Terminals & Connectors
• Full Technical Description: Long Tongue Type; Copper Material; 3-3/8 Inch Overall Length; 4/0 AWG min. Conductor Size; 300 kcmil Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 2-1/8 Inch L X 1-3/16 Inch W X 5/16 Inch Thk Pad Size; 2 Pad Hole(S); Straight Pad Type; Hex Head Screw Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210320137
• SKU Name: t&b 32013

Resources

• Manufacturer Spec Sheet
