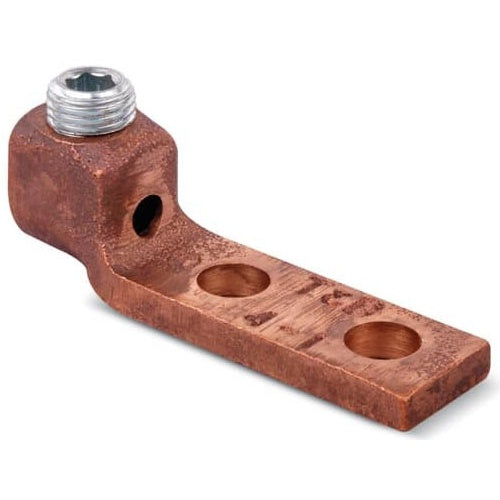

T&B 32015 2-Hle Lock-Tite Lug 300-500 Bolt 3/8"

Overview

T&B 32015 2-Hle Lock-Tite Lug 300-500 Bolt 3/8"

Product Specifications

• UPC: 78621032015
• Number Of Pad Holes: 1
• Pad Size: 2-1/8 INCH L X 1-3/8 INCH W X 11/32 INCH THK
• Stud Size: 3/8 INCH
• Overall Length: 3-1/2 INCH
• Approval: UL, CSA
• Catalog Number: 32015
• Brand Name: LOCKTITE[R]
• Model: 32
• Number Of Conductors: 1
• Minimum Conductor Size: 300 MCM
• Maximum Conductor Size: 500 MCM
• Conductor Material: COPPER
• Screw Type: HEX HEAD
• Catalog Description: LOCKTITE COPPER TWO-HOLE LUG FOR CONDUCTOR RANGE 300-500 KCMIL
• Category: Large Terminals & Connectors
• Full Technical Description: 3-1/2 Inch Overall Length; 300 MCM min. Conductor Size; 500 MCM Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 3/8 Inch Stud Size; 2-1/8 Inch L X 1-3/8 Inch W X 11/32 Inch Thk Pad Size; 1 Pad Hole(S); Hex Head Screw Type; LOCKTITE[R] Brand; 32 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210320151
• SKU Name: t&b 32015
