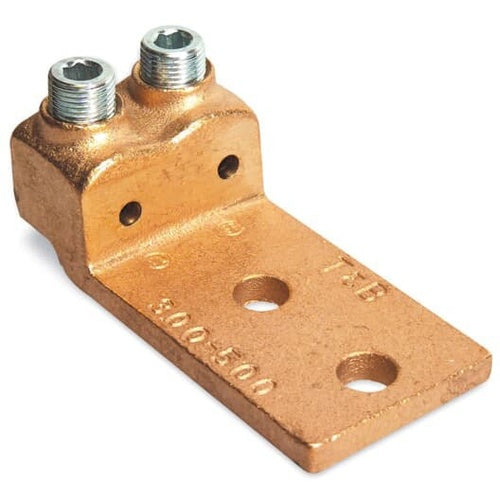

T&B 32015BD Locktite Copper Double Barrel Lug 300-500

Overview

T&B 32015BD Locktite Copper Double Barrel Lug 300-500

Product Specifications

• UPC: 78621080286
• Number Of Pad Holes: 2
• Pad Size: 3-15/16 INCH L X 2-1/2 INCH W X 11/32 INCH THK
• Stud Size: 1/2 INCH
• Overall Length: 5-3/8 INCH
• Approval: UL, CSA
• Additional Information: DOUBLE BARREL
• Catalog Number: 32015BD
• Brand Name: LOCKTITE[R]
• Model: 32
• Type: SERRATED SADDLE
• Number Of Conductors: 2
• Minimum Conductor Size: 300 MCM
• Maximum Conductor Size: 500 MCM
• Conductor Material: COPPER
• Catalog Description: LOCKTITE COPPER DOUBLE-BARREL LUG FOR CONDUCTOR RANGE 300-500 KCMIL
• Category: Large Terminals & Connectors
• Full Technical Description: Serrated Saddle Type; 5-3/8 Inch Overall Length; 300 MCM min. Conductor Size; 500 MCM Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 2 Conductor(S); 1/2 Inch Stud Size; 3-15/16 Inch L X 2-1/2 Inch W X 11/32 Inch Thk Pad Size; 2 Pad Hole(S); LOCKTITE[R] Brand; Double Barrel; 32 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210802862
• SKU Name: t&b 32015bd

Resources

• Manufacturer Spec Sheet
