T&B 32015TB Locktite Copper Triple Barrel Lug 300-500

Overview

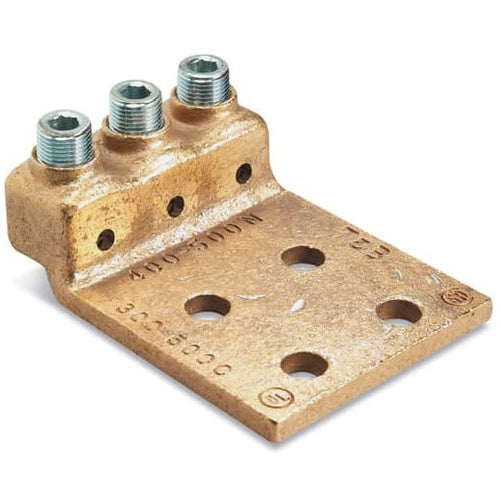

T&B 32015TB Locktite Copper Triple Barrel Lug 300-500

Product Specifications

• UPC: 78621080287
• Material: Copper
• Number Of Pad Holes: 4
• Pad Size: 4 Inch L x 4 Inch W x 11/32 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 5-3/8 Inch
• Approval: UL, CSA
• Catalog Number: 32015TB
• Brand Name: LOCKTITE[R]
• Type: Serrated Saddle, Triple Barrel
• Number Of Conductors: 3
• Minimum Conductor Size: 300 KCMIL
• Maximum Conductor Size: 500 KCMIL
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER TRIPLE-BARREL LUG FOR CONDUCTOR RANGE 300-500 KCMIL
• Category: Large Terminals & Connectors
• Full Technical Description: Serrated Saddle, Triple Barrel Type; Copper Material; 5-3/8 Inch Overall Length; 300 kcmil min. Conductor Size; 500 kcmil Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 3 Conductor(S); 1/2 Inch Stud Size; 4 Inch L X 4 Inch W X 11/32 Inch Thk Pad Size; 4 Pad Hole(S); Straight Pad Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210802879
• SKU Name: t&b 32015tb

Resources

• Manufacturer Spec Sheet
