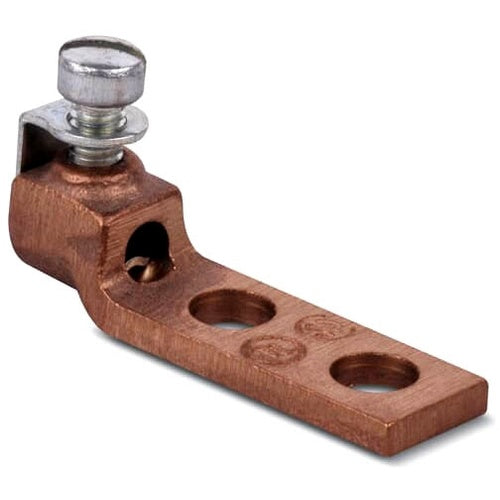

T&B 32017 Locktite Copper 2-Hole Lug 500-750

Overview

T&B 32017 Locktite Copper 2-Hole Lug 500-750

Product Specifications

• UPC: 78621032017
• Number Of Pad Holes: 1
• Pad Size: 3 INCH L X 1-3/4 INCH W X 13/32 INCH THK
• Stud Size: 1/2 INCH
• Overall Length: 4-19/32 INCH
• Approval: UL, CSA
• Catalog Number: 32017
• Brand Name: LOCKTITE[R]
• Model: 32
• Number Of Conductors: 1
• Minimum Conductor Size: 500 MCM
• Maximum Conductor Size: 750 MCM
• Conductor Material: COPPER
• Screw Type: HEX HEAD
• Catalog Description: LOCKTITE COPPER TWO-HOLE LUG FOR CONDUCTOR RANGE 500-750 KCMIL
• Category: Large Terminals & Connectors
• Full Technical Description: 4-19/32 Inch Overall Length; 500 MCM min. Conductor Size; 750 MCM Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 3 Inch L X 1-3/4 Inch W X 13/32 Inch Thk Pad Size; 1 Pad Hole(S); Hex Head Screw Type; LOCKTITE[R] Brand; 32 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210320175
• SKU Name: t&b 32017
