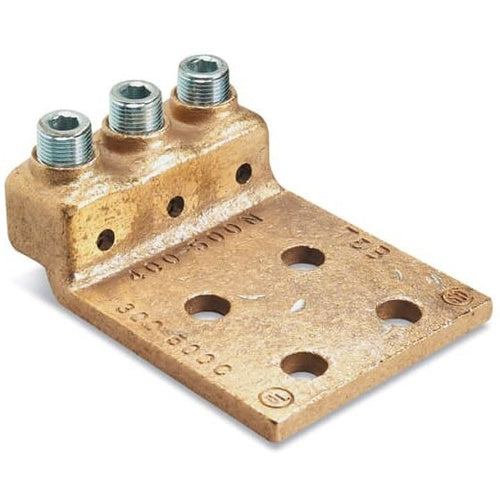

T&B 32017TB Locktite Copper Triple Barrel Lug 500-750

Overview

T&B 32017TB Locktite Copper Triple Barrel Lug 500-750

Product Specifications

• UPC: 78621080290
• Material: Copper
• Number Of Pad Holes: 4
• Pad Size: 4 Inch L x 4 Inch W x 13/32 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 5-19/32 Inch
• Approval: UL, CSA
• Catalog Number: 32017TB
• Brand Name: LOCKTITE[R]
• Type: Serrated Saddle, Triple Barrel
• Number Of Conductors: 3
• Minimum Conductor Size: 500 KCMIL
• Maximum Conductor Size: 750 KCMIL
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER TRIPLE-BARREL LUG FOR CONDUCTOR RANGE 500-750 KCMIL
• Category: Large Terminals & Connectors
• Full Technical Description: Serrated Saddle, Triple Barrel Type; Copper Material; 5-19/32 Inch Overall Length; 500 kcmil min. Conductor Size; 750 kcmil Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 3 Conductor(S); 1/2 Inch Stud Size; 4 Inch L X 4 Inch W X 13/32 Inch Thk Pad Size; 4 Pad Hole(S); Straight Pad Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210802909
• SKU Name: t&b 32017tb

Resources

• Manufacturer Spec Sheet
