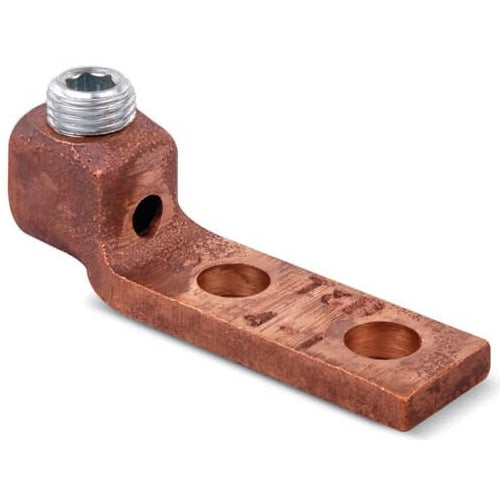

T&B 32211 Locktite Copper 2-Hole Nema Lug 2/0-4/0

Overview

T&B 32211 Locktite Copper 2-Hole Nema Lug 2/0-4/0

Product Specifications

• UPC: 78621032211
• Material: Copper
• Number Of Pad Holes: 2 NEMA
• Pad Size: 3 Inch L x 1 Inch W x 9/32 Inch Thk
• Stud Size: 1/2 Inch
• Overall Length: 4-1/8 Inch
• Approval: UL, CSA
• Catalog Number: 32211
• Brand Name: LOCKTITE[R]
• Type: Drilled
• Number Of Conductors: 1
• Minimum Conductor Size: 2/0 AWG
• Maximum Conductor Size: 4/0 AWG
• Conductor Material: Copper
• Pad Type: Straight
• Catalog Description: LOCKTITE COPPER TWO-HOLE NEMA DRILLED LUG FOR CONDUCTOR RANGE 2/0 TO 4/0
• Category: Large Terminals & Connectors
• Full Technical Description: Drilled Type; Copper Material; 4-1/8 Inch Overall Length; 2/0 AWG min. Conductor Size; 4/0 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 3 Inch L X 1 Inch W X 9/32 Inch Thk Pad Size; 2 NEMA Pad Hole(S); Straight Pad Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210322117
• SKU Name: t&b 32211

Resources

• Manufacturer Spec Sheet
