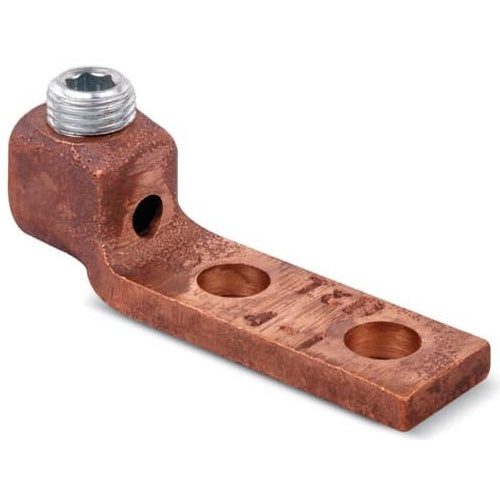

T&B 32219 Locktite Copper 2-Hole Nema Lug 750-1000

Overview

T&B 32219 Locktite Copper 2-Hole Nema Lug 750-1000

Product Specifications

• UPC: 78621032219
• Pad Size: 3-1/2 INCH L X 3 INCH W X 15/32 INCH THK
• Stud Size: 1/2 INCH
• Overall Length: 5-1/4 INCH
• Approval: UL, CSA
• Catalog Number: 32219
• Brand Name: LOCKTITE.
• Model: 32
• Number Of Conductors: 1
• Minimum Conductor Size: 750 MCM
• Maximum Conductor Size: 1000 MCM
• Conductor Material: COPPER
• Number Of Pad Holes: 2 NEMA
• Catalog Description: LOCKTITE COPPER TWO-HOLE NEMA DRILLED LUG, CONDUCTOR RANGE 750-1000 KCMIL, 1/2 INCH BOLT HOLE, WRENCH TORQUE 400 IN/LBS
• Category: Large Terminals & Connectors
• Full Technical Description: 5-1/4 Inch Overall Length; 750 MCM min. Conductor Size; 1000 MCM Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 3-1/2 Inch L X 3 Inch W X 15/32 Inch Thk Pad Size; 2 NEMA Pad Hole(S); Locktite. Brand; 32 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210322193
• SKU Name: t&b 32219

Resources

• Manufacturer Spec Sheet
