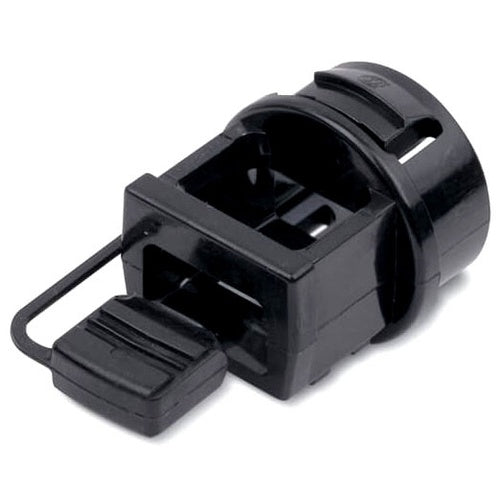

T&B 3300 Nmt Cable Fitting 1/2" Len1-1/32 Ht1-5/16

Overview

T&B 3300 Nmt Cable Fitting 1/2" Len1-1/32 Ht1-5/16

Product Specifications

• UPC: 78621003300
• Additional Information: Approval UL, CSA; Temperature Rating 105 Deg C
• Catalog Number: 3300
• Installation: Snap-In Connector
• Trade Size: 1/2 Inch
• Cable Type: Non-Metallic Sheathed Cable
• Cable Size: (2) 10 AWG, (2) 12 AWG, (2) 14 AWG, (2) 14 AWG (Non-Metallic Cable), (2) 18 AWG, (3) 18 AWG (SJ, SJO Cord), (2) 18 AWG (SV, SVO, SJT, SJTO Cord), 0.125 to 0.3 Inch Dia
• Throat Type: Non-Metallic
• Material: High-Impact Polycarbonate
• Standard Package: 500
• Catalog Description: FITTING, NON-METALLIC SHEATHED CABLE, KNOCKOUT SIZE 1/2 INCH, LENGTH 1-1/32 INCH, HEIGHT 1-5/16 INCH, HOLE SIZE 5/16 INCH X 9/16 INCH, THERMOPLASTIC, FOR USE WITH 10-2, 12-2, AND 14-2 NON-METALLIC CABLE, 18-2 AND 18-3 SJ AND SJO CORDS AND 18-2 SV, SVO, SJT AND SJTO CORDS, SINGLE OR MULTIPLE, CORD CAPACITY .125-.300 INCH DIAMETER
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: High-Impact Polycarbonate Material; Snap-in Connector Installation; Non-Metallic Sheathed Cable Cable Type; (2) 10 AWG, (2) 12 AWG, (2) 14 AWG, (2) 14 AWG (Non-Metallic Cable), (2) 18 AWG, (3) 18 AWG (SJ, SJO Cord), (2) 18 AWG (SV, SVO, SJT, SJTO Cord), 0.125 to 0.3 Inch Dia Cable Size; 500 Standard Package; 1/2 Inch Trade Size; Non-Metallic Throat Type; Approval UL, CSA; Temperature Rating 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210033006
• SKU Name: t&b 3300

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
