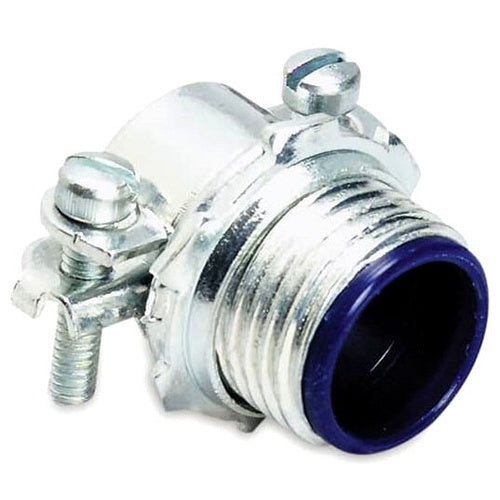

T&B 3304M 1 Insulated 2-Screw Connector

Overview

T&B 3304M 1 Insulated 2-Screw Connector

Product Specifications

• UPC: 78621080554
• Approval: UL, CSA
• Additional Information: Overall Dimension 1-1/4 Inch L x 1-7/8 Inch W x 1-1/2 Inch H
• Catalog Number: 3304M
• Installation: 2 Screw Clamp
• Cable Type: Non-Metallic Sheathed Cable/Flexible Cable/Service Entrance Cable
• Cable Size: (3) 8 AWG, (3) 6 AWG, (3) 4 AWG Non-Metallic Single Cable, (2) 8 AWG, (3) 10 AWG Non-Metallic Pair Cable, (2) 4 to 6 AWG (Ground), (2) 3 to 5 AWG (Ground), (2) 2 to 4 AWG (Ground) (Service Entrance Cable)
• Throat Type: Insulated
• Knockout Size: 1 Inch
• Material: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut), Thermoplastic (Insulator)
• Standard Package: 50
• Catalog Description: SHEATHED CABLE FITTING, STRAIGHT, KNOCKOUT SIZE 1 INCH, NYLON INSULATED, TWO SCREW CONNECTOR, STEEL WITH ZINC PLATING
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Electro Zinc Plated Chromate Coated Steel (Body/Clamp/Locknut), Thermoplastic (Insulator) Material; 2 Screw Clamp Installation; Non-Metallic Sheathed Cable/Flexible Cable/Service Entrance Cable Cable Type; (3) 8 AWG, (3) 6 AWG, (3) 4 AWG Non-Metallic Single Cable, (2) 8 AWG, (3) 10 AWG Non-Metallic Pair Cable, (2) 4 to 6 AWG (Ground), (2) 3 to 5 AWG (Ground), (2) 2 to 4 AWG (Ground) (Service Entrance Cable) Cable Size; UL, CSA Approval; 50 Standard Package; 1 Inch Knockout Size; Insulated Throat Type; Overall Dimension 1-1/4 Inch L X 1-7/8 Inch W X 1-1/2 Inch H
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210805542
• SKU Name: t&b 3304m

Resources

• Manufacturer Spec Sheet
