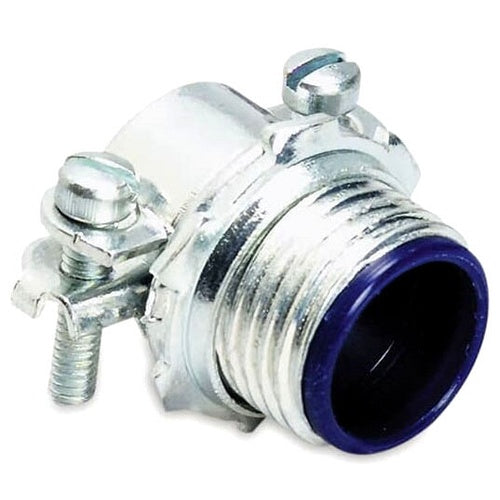

T&B 3306M 1-1/2" Insulated 2-Screw Connector

Overview

T&B 3306M 1-1/2" Insulated 2-Screw Connector

Product Specifications

• UPC: 78621080556
• Approval: UL, CSA
• Catalog Number: 3306M
• Model: 3302M
• Installation: 2 SCREW CLAMP
• Cable Type: FLEXIBLE CABLE/NON METALLIC CABLE/SERVICE ENTRANCE CABLE
• Cable Size: (1) 4/3 AWG (NON METALLIC CABLE); (3) 3/0 AWG, (3) 4/0 AWG, (2) 3/0 AWG, 1/0 AWG (GROUND), (2) 4/0 AWG, 2/0 AWG (GROUND) (SERVICE ENTRANCE CABLE)
• Throat Type: INSULATED
• Knockout Size: 1-1/2 INCH
• Material: ELECTRO ZINC PLATED CHROMATE COATED MALLEABLE IRON BODY, STEEL CLAMP/LOCKNUT, THERMOPLASTIC INSULATOR
• Catalog Description: SHEATHED CABLE FITTING, STRAIGHT, KNOCKOUT SIZE 1-1/2 INCH, NYLON INSULATED, TWO SCREW CONNECTOR, MALLEABLE IRON WITH ZINC PLATING
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Electro Zinc Plated Chromate Coated Malleable Iron Body, Steel Clamp/Locknut, Thermoplastic Insulator Material; 2 Screw Clamp Installation; Flexible Cable/Non Metallic Cable/Service Entrance Cable Cable Type; (1) 4/3 AWG (Non Metallic Cable); (3) 3/0 AWG, (3) 4/0 AWG, (2) 3/0 AWG, 1/0 AWG (Ground), (2) 4/0 AWG, 2/0 AWG (Ground) (Service Entrance Cable) Cable Size; UL, CSA Approval; 1-1/2 Inch Knockout Size; Insulated Throat Type; 3302M Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121419
• UPC 12 Digit: 786210805566
• SKU Name: t&b 3306m

Resources

• Manufacturer Spec Sheet
