T&B 3350 Plastic Connectors

Overview

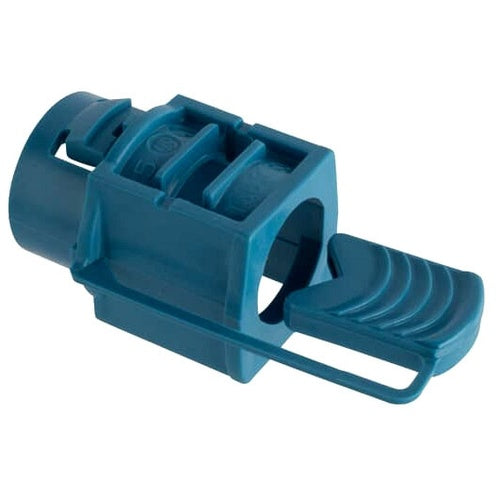

T&B 3350 Plastic Connectors

Product Specifications

• UPC: 78621048848
• Approval: UL 514B, CSA C22.2
• Additional Information: Applicable Standard ANSI C33.84, NFPA 70
• Catalog Number: 3350
• Installation: Snap-In
• Cable Type: Non-Metallic Sheathed Cable/Flexible Cable
• Cable Size: (3) 10 AWG, (3) 12 AWG, (3) 14 AWG, (2) 10 AWG, (2) 12 AWG, (2) 14 AWG, (2) 12 to 2 AWG, (2) 14 to 2 AWG (Non-Metallic Cable), 0.3 to 0.6 Inch OD (Cord)
• Throat Type: Insulated
• Knockout Size: 1/2 Inch
• Material: Molded High Impact Polycarbonate
• Standard Package: 500
• Catalog Description: CONNECTOR, NON-METALLIC SHEATHED CABLE AND FLEXIBLE CORD, SIZE 1/2 INCH, TOTAL LENGTH 15/16 INCH, WIDTH 7/8 INCH, CLAMPING RANGE MINIMUM 0.30 INCH TO MAXIMUM 0.60 INCH, NON-METALLIC, SUGGESTED APPLICATION #10-3, #12-3, #14-3, #10-2, #12-2, #14-2 TYPE NON-METALLIC CABLE, ALSO MULTIPLE (2) #12-2 AND #14-2 TYPE NON-METALLIC CABLE, .300 INCH TO .600 INCH OUTSIDE DIAMETER CORD
• Category: Non-Metallic Cable Cable Fittings
• Full Technical Description: Molded High Impact Polycarbonate Material; Snap-in Installation; Non-Metallic Sheathed Cable/Flexible Cable Cable Type; (3) 10 AWG, (3) 12 AWG, (3) 14 AWG, (2) 10 AWG, (2) 12 AWG, (2) 14 AWG, (2) 12 to 2 AWG, (2) 14 to 2 AWG (Non-Metallic Cable), 0.3 to 0.6 Inch OD (Cord) Cable Size; UL 514B, CSA C22.2 Approval; 500 Standard Package; 1/2 Inch Knockout Size; Insulated Throat Type; Applicable Standard ANSI C33.84, NFPA 70
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Nonmetallic Sheathed Cable Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210488486
• SKU Name: t&b 3350

Resources

• Manufacturer Spec Sheet
