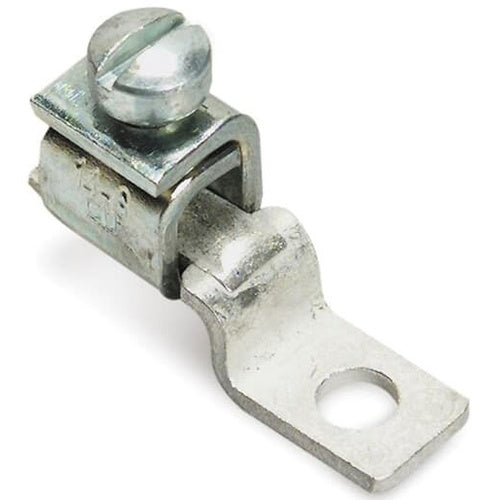

T&B 35301 Locktite 1-Hole Lug Offset 14-6 No10B

Overview

T&B 35301 Locktite 1-Hole Lug Offset 14-6 No10B

Product Specifications

• UPC: 78621035301
• Screw Type: Slot
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 1/2 Inch L x 3/8 Inch W x 0.064 Inch Thk
• Stud Size: #10
• Overall Length: 1-3/16 Inch
• Approval: UL, CSA
• Catalog Number: 35301
• Brand Name: LOCKTITE[R]
• Type: Double Lap
• Number Of Conductors: 1
• Minimum Conductor Size: 14 AWG
• Maximum Conductor Size: 6 AWG
• Conductor Material: Copper
• Pad Type: Offset
• Catalog Description: LOCKTITE ONE-HOLE LUG, OFFSET TONGUE, COPPER TONGUE, CONDUCTOR RANGE 14-6 AWG, #10 BOLT, STEEL CADMIUM PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Double Lap Type; Copper Material; 1-3/16 Inch Overall Length; 14 AWG min. Conductor Size; 6 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); #10 Stud Size; 1/2 Inch L X 3/8 Inch W X 0.064 Inch Thk Pad Size; 1 Pad Hole(S); Offset Pad Type; Slot Screw Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210353012
• SKU Name: t&b 35301

Resources

• Manufacturer Spec Sheet
