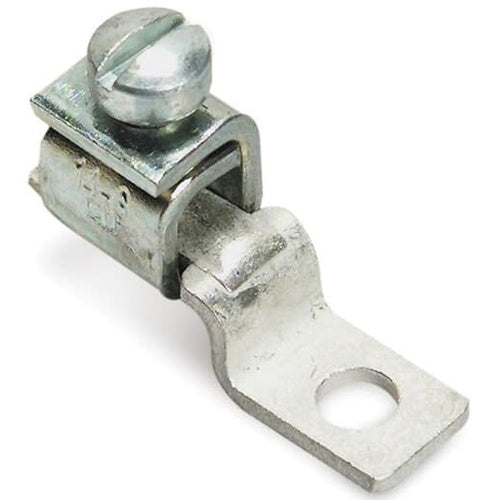

T&B 35401 Lug-It Connector

Overview

T&B 35401 Lug-It Connector

Product Specifications

• UPC: 78621035401
• Material: Copper
• Number Of Pad Holes: 1
• Pad Size: 5/8 Inch Length x 1/2 Inch Width x 0.081 Inch Thickness
• Stud Size: 1/4 Inch
• Overall Length: 1-7/16 Inch
• Approval: UL, CSA
• Catalog Number: 35401
• Type: Double Lap
• Number Of Conductors: 1
• Minimum Conductor Size: 8 AWG
• Maximum Conductor Size: 2 AWG
• Conductor Material: Copper
• Pad Type: Offset
• Screw Type: Slot
• Catalog Description: LOCKTITE ONE-HOLE LUG, OFFSET TONGUE, COPPER TONGUE, CONDUCTOR RANGE 8 TO 2 AWG, 1/4 INCH BOLT, STEEL CADMIUM PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Double Lap Type; Copper Material; 1-7/16 Inch Overall Length; 8 AWG min. Conductor Size; 2 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 5/8 Inch Length X 1/2 Inch Width X 0.081 Inch Thickness Pad Size; 1 Pad Hole(S); Offset Pad Type; Slot Screw Type
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210354019
• SKU Name: t&b 35401
