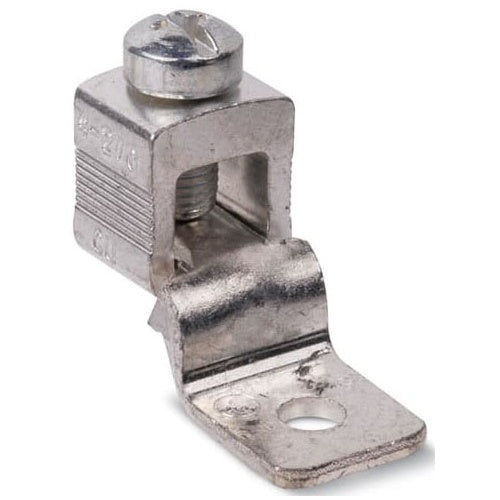

T&B 35501 Connector, Mech. Lug

Overview

T&B 35501 Connector, Mech. Lug

Product Specifications

• UPC: 78621035501
• Screw Type: Hex Head
• Material: Aluminum
• Number Of Pad Holes: 1
• Pad Size: 13/16 Inch L x 3/4 Inch W x 0.101 Inch Thk
• Stud Size: 1/4 Inch
• Overall Length: 1-13/16 Inch
• Approval: UL, CSA
• Catalog Number: 35501
• Brand Name: LOCKTITE[R]
• Type: Double Lap
• Number Of Conductors: 1
• Minimum Conductor Size: 4 AWG
• Maximum Conductor Size: 2/0 AWG
• Conductor Material: Copper
• Pad Type: Offset
• Catalog Description: LOCKTITE ONE-HOLE LUG, OFFSET TONGUE, ALUMINUM BODY, COPPER TONGUE, CONDUCTOR RANGE 4 TO 2/0 AWG, 1/4 INCH BOLT, ALUMINUM TIN PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Double Lap Type; Aluminum Material; 1-13/16 Inch Overall Length; 4 AWG min. Conductor Size; 2/0 AWG Max. Conductor Size; Copper Conductor Material; UL, CSA Approval; 1 Conductor(S); 1/4 Inch Stud Size; 13/16 Inch L X 3/4 Inch W X 0.101 Inch Thk Pad Size; 1 Pad Hole(S); Offset Pad Type; Hex Head Screw Type; LOCKTITE[R] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 786210355016
• SKU Name: t&b 35501

Resources

• Manufacturer Spec Sheet
