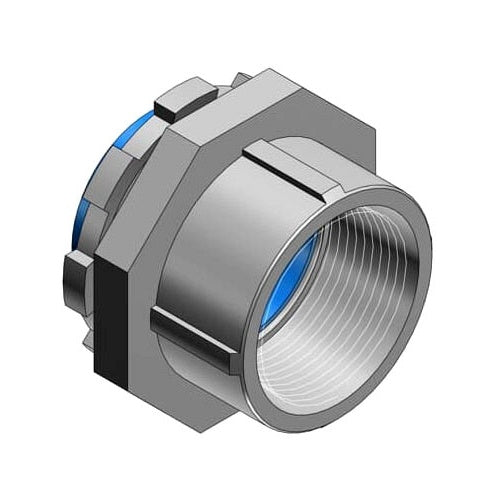

T&B 379-TB 4" Insulated Bullet Conduit Hub

Overview

T&B 379-TB 4" Insulated Bullet Conduit Hub

Product Specifications

• UPC: 78621000379
• Constructional Feature: Dust Tight, Rain Tight, Watertight
• Standard Package: 1
• Approval: UL 514-B, CSA C22.2
• Used On: RIGID/IMC Conduit
• Additional Information: Applicable Standard NEMA FB-1, NFPA 70; Includes Neoprene O Ring; to Connect Threaded Metal Conduit to a Threadless Opening in a Box or Enclosure in Outdoor or Indoor Location Exposed to Continuous or Intermittent Moisture, to Positively Bond Conduit to B
• Catalog Number: 379-TB
• Brand Name: Bullet[R]
• Type: Threaded Hub
• Throat Type: Nylon Insulated
• Trade Size: 4 Inch
• Diameter: 6-3/16 Inch
• Length: 2-1/2 Inch
• Material: Electro Zinc Plated Chromate Coated Steel/Malleable Iron
• Catalog Description: 4 INCH HUB CONNECTOR, MALLEABLE IRON ELECTRO ZINC PLATED, NYLON INSULATED FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Hub Type; Electro Zinc Plated Chromate Coated Steel/Malleable Iron Material; 2-1/2 Inch; Rigid/Imc Conduit Used on; UL 514-B, CSA C22.2 Approval; 6-3/16 Inch Diameter; 1 Standard Package; 4 Inch Trade Size; Dust Tight, Rain Tight, Watertight; Nylon Insulated Throat Type; BULLET[R] Brand; Applicable Standard NEMA FB-1, NFPA 70; Includes Neoprene O Ring; to Connect Threaded Metal Conduit to A Threadless Opening in A Box or Enclosure in Outdoor or Indoor Location Exposed to Continuous or Intermittent Moisture, to Positively Bond Conduit to Box or Enclosure, Suitable For Hazardous Locations Use in Class I, Division 2, Class II, Division 1 and 2; Class III, Division 1 and 2 , Suitable For Hazardous Locations Use in Class II, Groups E, F, G and Class III Locations
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Connector
• Unspsc: 39121311
• UPC 12 Digit: 786210003795
• SKU Name: t&b 379tb

Resources

• Manufacturer Spec Sheet
