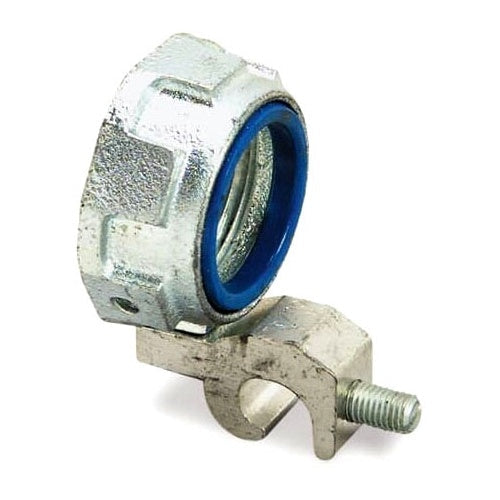

T&B 3862 3/4" Insulated Ground Bushing W/8-2/0 Range

Overview

T&B 3862 3/4" Insulated Ground Bushing W/8-2/0 Range

Product Specifications

• UPC: 78621003862
• Height: 0.66 Inch
• Material: Electro Zinc Plated Cast Malleable Iron
• Standard Package: 100
• Approval: UL E3060, CSA
• Used On: IMC/Rigid Metal Conduit
• Additional Information: INSULATOR MATERIAL THERMOPLASTIC; THROAT SIZE 0.742 INCH; TEMPERATURE RATING 150 DEG C
• Catalog Number: 3862
• Type: Threaded
• Trade Size: 3/4 Inch
• Wire Size: 8 to 2/0 AWG
• Lug Type: Lay-In, Tin Plated Aluminum
• Conductor Material: Copper/Aluminum
• Throat Type: Thermoplastic Insulated
• Diameter: 1.42 Inch
• Catalog Description: 3/4 INCH THREADED INSULATED GROUNDING BUSHING, IRON, ELECTRO ZINC PLATED, WIRE RANGE 8 TO 2/0, THERMOPLASTIC INSULATOR FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Threaded Type; Electro Zinc Plated Cast Malleable Iron Material; 0.66 Inch; Imc/Rigid Metal Conduit Used on; 8 to 2/0 AWG Wire Size; Copper/Aluminum Conductor Material; UL E3060, CSA Approval; 1.42 Inch Diameter; 100 Standard Package; 3/4 Inch Trade Size; Thermoplastic Insulated Throat Type; Lay-in, Tin Plated Aluminum Lug Type; Insulator Material Thermoplastic; Throat Size 0.742 Inch; Temperature Rating 150 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Bushing
• Unspsc: 39121312
• UPC 12 Digit: 786210038629
• SKU Name: t&b 3862
