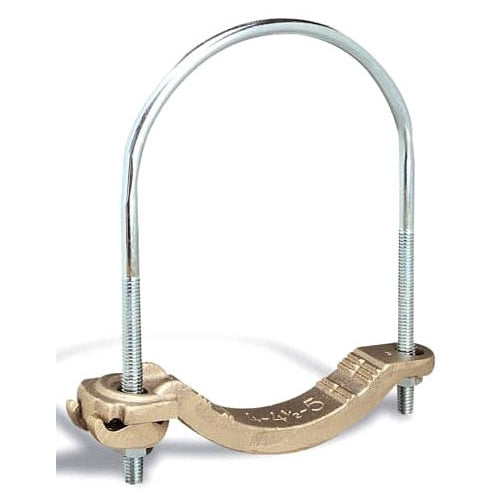

T&B 3904 Water Pipe Ground ClAMP, 4-4/0, 2.5-3.5

Overview

T&B 3904 Water Pipe Ground Clamp, 4-4/0, 2.5-3.5

Product Specifications

• UPC: 78621003904
• Catalog Number: 3904
• Brand Name: Blackburn
• Conductor Size: 4 to 4/0 AWG
• Ips Size: 2-1/2 to 3-1/2 Inch
• Installation: U-Bolt to Pipe
• Material: Bronze (Saddle), Steel (U-Bolt)
• Approval: UL, CSA
• Used On: Direct Burial
• Catalog Description: WATERPIPE GROUND CLAMP FOR WIRE RANGE 4 - 4/0, WATER PIPE SIZE 2 1/2 - 3 1/2 , BRONZE SADDLE WITH STEEL U-BOLT
• Category: Large Terminals & Connectors
• Full Technical Description: Bronze (Saddle), Steel (U-Bolt) Material; Direct Burial Used on; U-Bolt to Pipe Installation; UL, CSA Approval; 4 to 4/0 AWG Conductor Size; 2-1/2 to 3-1/2 Inch IPS Size; Ezground Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 786210039046
• SKU Name: t&b 3904

Resources

• Product Spec Sheet
