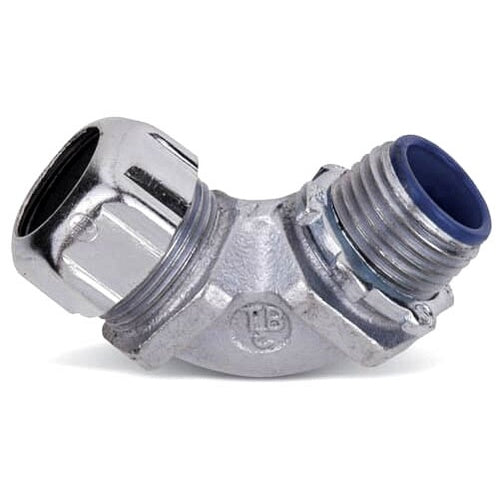

T&B 4242 1" 90D Insulated Short Elbow Iron Emt

Overview

T&B 4242 1" 90D Insulated Short Elbow Iron Emt

Product Specifications

• UPC: 78621004242
• Approval: UL E16592, UL 514-B, CSA C22.2
• Used On: EMT Conduit
• Additional Information: Applicable Standard Federal Specification WF-408, NEMA FB1, NFPA 70; Thread Length 5/8 Inch
• Catalog Number: 4242
• Installation: Threaded Male
• Bend Angle: 90 Deg
• Trade Size: 1 Inch
• Size: 1-27/32 Inch Dia
• Throat Type: Thermoplastic Insulated
• Constructional Feature: Rain Tight
• Material: Malleable Iron
• Catalog Description: 1 INCH INSULATED SHORT ELBOW, MALLEABLE IRON, INSULATOR THERMOPLASTIC FOR USE WITH EMT CONDUIT
• Category: Steel Insulated Short 90 Degree Compression Emt Connectors
• Full Technical Description: Malleable Iron Material; 1-27/32 Inch Dia Size; EMT Conduit Used on; Threaded Male Installation; UL E16592, UL 514-B, CSA C22.2 Approval; 1 Inch Trade Size; Rain Tight; 90 Deg Bend Angle; Thermoplastic Insulated Throat Type; Applicable Standard Federal Specification Wf-408, NEMA FB1, NFPA 70; Thread Length 5/8 Inch
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Elbow Joint
• Unspsc: 39131717
• UPC 12 Digit: 786210042428
• SKU Name: t&b 4242

Resources

• Manufacturer Spec Sheet
