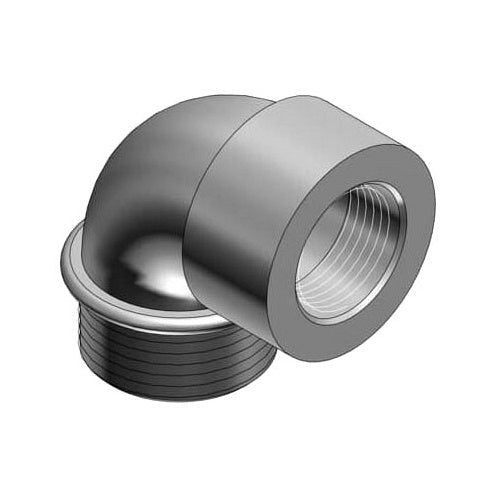

T&B 4252 1" 90D Short Elbow Iron Imc

Overview

T&B 4252 1" 90D Short Elbow Iron Imc

Product Specifications

• UPC: 78621004252
• Standard Package: 25 per Pack
• Approval: UL, CSA
• Used On: IMC/Rigid Conduit
• Additional Information: Operating Temperature 0 to 105 Deg C
• Catalog Number: 4252
• Brand Name: INSULINER[R]
• Installation: Threaded Male/Female
• Bend Angle: 90 Degree
• Trade Size: 1 Inch
• Size: 1-13/16 Inch Diameter
• Throat Type: Non-Insulated
• Material: Natural Dura Plate Malleable Iron
• Catalog Description: 1 INCH SHORT ELBOW, MALLEABLE IRON FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Steel
• Full Technical Description: Natural Dura Plate Malleable Iron Material; 1-13/16 Inch Diameter Size; Imc/Rigid Conduit Used on; Threaded Male/Female Installation; UL, CSA Approval; 25 Per Pack Standard Package; 1 Inch Trade Size; 90 Degree Bend Angle; Non-Insulated Throat Type; Operating Temperature 0 to 105 Deg C
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Elbow Joint
• Unspsc: 39131717
• UPC 12 Digit: 786210042527
• SKU Name: t&b 4252
