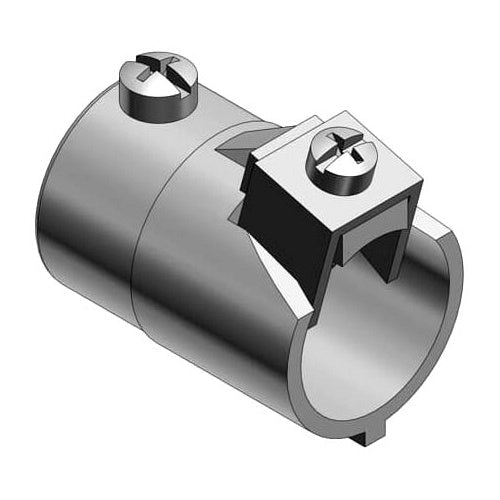

T&B 503-TB 1/2" Emt To Flexible Single Screw Adapter

Overview

T&B 503-TB 1/2" Emt To Flexible Single Screw Adapter

Product Specifications

• UPC: 78621000503
• Used On: EMT/Flexible Conduit/Armored Cable
• Catalog Number: 503-TB
• Brand Name: TITE-BITE[R]
• Installation: EMT to Flexible Metal Conduit
• Trade Size: 1/2 Inch
• Material: Zinc Plated Chromate Dipped Malleable Iron
• Size: 1-3/16 Inch Diameter x 1-21/32 Inch Length
• Standard Package: 100
• Approval: UL, CSA
• Catalog Description: 1/2 INCH TO 1/2 INCH FLEX TO EMT ADAPTER
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Zinc Plated Chromate Dipped Malleable Iron Material; 1-3/16 Inch Diameter X 1-21/32 Inch Length Size; Emt/Flexible Conduit/Armored Cable Used on; EMT to Flexible Metal Conduit Installation; UL, CSA Approval; 100 Standard Package; 1/2 Inch Trade Size; TITE-BITE[R] Brand
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Combination Coupling
• Unspsc: 39121434
• UPC 12 Digit: 786210005034
• SKU Name: t&b 503tb

Resources

• Manufacturer Spec Sheet
