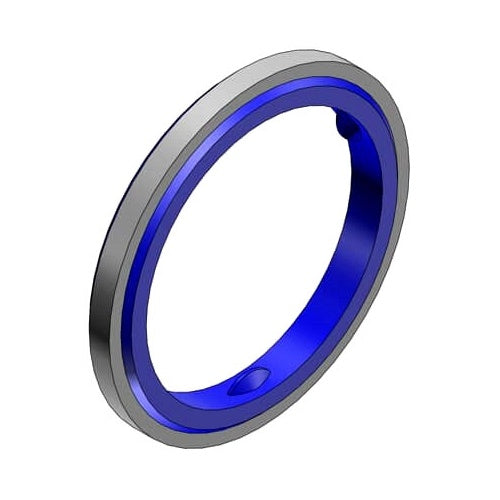

T&B 5302 Sealing Ring

Overview

T&B 5302 Sealing Ring

Product Specifications

• UPC: 78621005302
• Catalog Number: 5302
• Brand Name: T&B
• Trade Size: 1/2 Inch
• Material: Santoprene Thermoplastic (Rubber Ring), Stainless Steel (Retainer)
• Size: 3/4 Inch Inner Diameter x 1-11/64 Inch Outer Diameter
• Approval: UL, CSA
• Additional Information: RoHS Compliant; Enclosure Rating NEMA 3R/4/6/13
• Catalog Description: 1/2 INCH SEALING RING, SANTOPRENE THERMOPLASTIC RUBBER WITH STAINLESS STEEL RETAINER, FOR USE WITH RIGID/IMC CONDUIT
• Category: Rigid Conduit Fittings - Plastic
• Full Technical Description: Santoprene Thermoplastic (Rubber Ring), Stainless Steel (Retainer) Material; 3/4 Inch Inner Diameter X 1-11/64 Inch Outer Diameter Size; UL, CSA Approval; 1/2 Inch Trade Size; RoHS Compliant; Enclosure Rating NEMA 3R/4/6/13
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Rigid/EMT Conduit Sealing Ring
• Unspsc: 31161818
• UPC 12 Digit: 786210053028
• SKU Name: t&b 5302

Resources

• Manufacturer Spec Sheet
