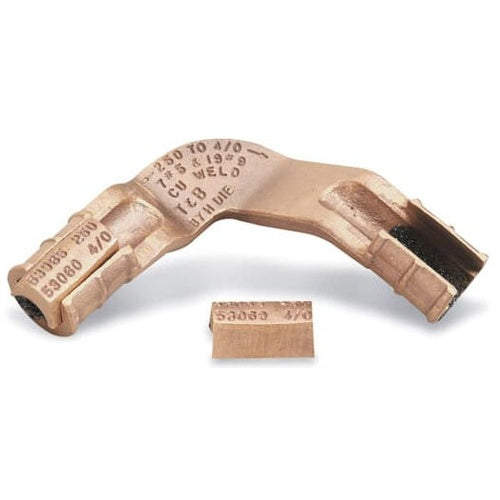

T&B 53075 Connector Grid

Overview

T&B 53075 Connector Grid

Product Specifications

• UPC: 78621053075
• Catalog Number: 53075
• Brand Name: E-Z-Ground[R]
• Type: Compression
• Conductor Size: 4/0 AWG to 250 KCMIL
• Conductor Material: Copper
• Grounding Rod Size: 1 Inch
• Application: Rod to Cable, Cable to Cable
• Additional Information: Die Code (Cable to Cable) 87H; Die Code (Rod to Cable) 125H
• Catalog Description: E-Z-GROUND GROUND GRID COPPER COMPRESSION CONNECTOR FOR CABLE RANGE 4/0 - 250 KCMIL, TAP 4/0 - 250 KCMIL, GROUND ROD 1.
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Compression Type; Copper Conductor Material; Rod to Cable, Cable to Cable Application; 4/0 AWG to 250 kcmil Conductor Size; 1 Inch Grounding Rod Size; EZGROUND[TM] Brand; Die Code (Cable to Cable) 87H; Die Code (Rod to Cable) 125H
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Grounding Connector
• Unspsc: 39121613
• UPC 12 Digit: 786210530758
• SKU Name: t&b 53075

Resources

• Manufacturer Spec Sheet
