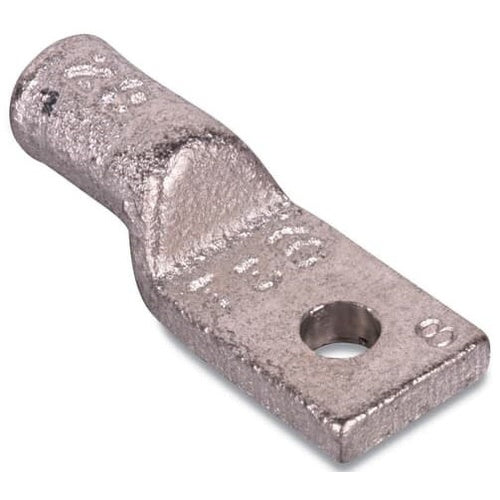

T&B 53105 Copper Tin Plated 1-Hole Lug Heavy Duty Standard No6 1/4B Gray

Overview

T&B 53105 Copper Tin Plated 1-Hole Lug Heavy Duty Standard No6 1/4B Gray

Product Specifications

• UPC: 78621053105
• Stud Size: 1/4 Inch
• Color: Gray
• Die Index: 29
• Material: Electro Tin Plated Cast Copper
• Overall Length: 1.43 Inch
• Approval: UL, CSA
• Catalog Number: 53105
• Model: 531
• Voltage Rating: 600 V to 35 KV
• Conductor Material: Copper
• Conductor Size: 6 AWG
• Barrel Type: Standard, Straight
• Pad Size: 0.75 Inch L x 0.5 Inch W x 0.12 Inch Thk
• Number Of Pad Holes: 1
• Catalog Description: COPPER ONE-HOLE LUG - HEAVY-DUTY, STANDARD BARREL, BLIND END, MAX 35KV, WIRE SIZE #6 AWG, 1/4 INCH BOLT SIZE, TIN PLATED, DIE CODE 29, DIE COLOR CODE GRAY
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated Cast Copper Material; Gray Color; 1.43 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 6 AWG Conductor Size; 1/4 Inch Stud Size; 29 Die Index; 0.75 Inch L X 0.5 Inch W X 0.12 Inch Thk Pad Size; 1 Pad Hole(S); Standard, Straight Barrel Type; 531 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210531052
• SKU Name: t&b 53105
