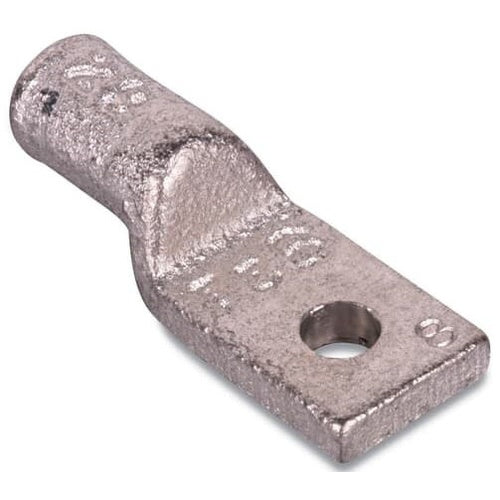

T&B 53115 Copper Tin Plated 1-Hole Lug Heavy-Duty Standard 350 1/2" Pink

Overview

T&B 53115 Copper Tin Plated 1-Hole Lug Heavy-Duty Standard 350 1/2" Pink

Product Specifications

• UPC: 78621053115
• Stud Size: 1/2 INCH
• Die Index: 99
• Material: ELECTROLYTIC TIN PLATED CAST COPPER
• Overall Length: 3-13/16 INCH
• Approval: UL, CSA
• Catalog Number: 53115
• Brand Name: Color-Keyed[R]
• Model: 531
• Voltage Rating: 600 V TO 35 KV
• Conductor Material: COPPER
• Conductor Size: 350 KCMIL
• Pad Size: 2 INCH L X 1-3/8 INCH W X 3/8 INCH THK
• Number Of Pad Holes: 1
• Catalog Description: COPPER ONE-HOLE LUG - HEAVY-DUTY, STANDARD BARREL, BLIND END, MAX 35KV, WIRE SIZE 350 KCMIL, 1/2 INCH BOLT SIZE, TIN PLATED, DIE CODE 99, DIE COLOR CODE PINK
• Category: Large Terminals & Connectors
• Full Technical Description: Electrolytic Tin Plated Cast Copper Material; 3-13/16 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 350 kcmil Conductor Size; 1/2 Inch Stud Size; 99 Die Index; 2 Inch L X 1-3/8 Inch W X 3/8 Inch Thk Pad Size; 1 Pad Hole(S); COLOR-KEYED[R] Brand; 531 Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Compression Cable Lug
• Unspsc: 39121405
• UPC 12 Digit: 786210531151
• SKU Name: t&b 53115
