Product Description

Overview

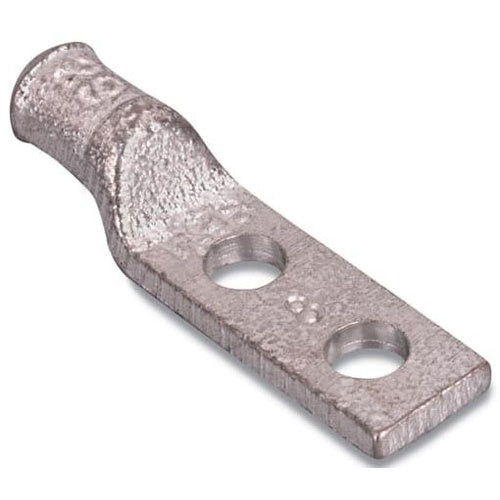

T&B 53204 Copper 2-Hole Heavy Duty Lug Standard Barrel No8 1/4B Gray

Product Specifications

  • Catalog Description: COPPER TWO-HOLE HEAVY-DUTY LUG, STANDARD BARREL, BLIND END, MAX 35KV, #8 AWG WIRE, 1/4 INCH BOLT SIZE, 5/8 INCH HOLE SPACING, TIN PLATED, DIE CODE 29, DIE COLOR CODE GRAY
  • Full Technical Description: Electrolytic Tin Plated Cast Copper Material; 2 Inch Overall Length; Copper Conductor Material; UL, CSA Approval; 600 V to 35 kV Voltage Rating; 8 AWG (Code) Conductor Size; 1/4 Inch Stud Size; 29 Die Index; 15/16 Inch L X 1/2 Inch W X 3/32 Inch Thk Pad Size; 2 Pad Hole(S); 5/8 to 3/4 Inch Pad Hole Spacing; COLOR-KEYED[R] Brand; 532 Model
  • Manufacturer: THOMAS & BETTS
  • Sub Category: Compression Cable Lug
  • Unspsc: 39121405
  • UPC 12 Digit: 786210532042
  • SKU Name: t&b 53204
