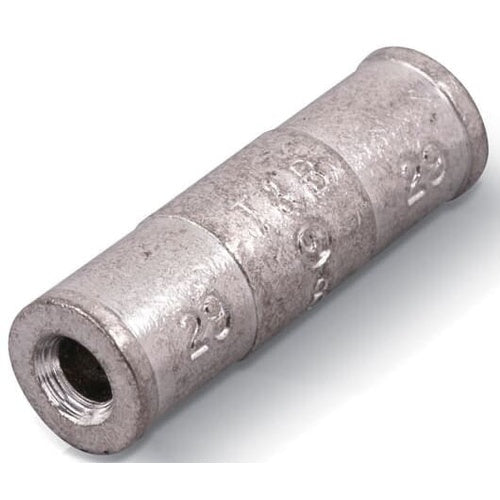

T&B 53513 Copper Tin Plated 2-Way Connector Splice Heavy-Duty 250

Overview

T&B 53513 Copper Tin Plated 2-Way Connector Splice Heavy-Duty 250

Product Specifications

• UPC: 78621053513
• Additional Information: APPLICABLE STANDARD NEC 250-81, NEC 250-91
• Catalog Number: 53513
• Brand Name: EZ Ground[T], Color-Keyed.
• Voltage Rating: 600 V TO 35 KV
• Material: CAST COPPER
• Finish: ELECTRO TIN PLATED
• Cable Size: 250 KCMIL
• Die Index: 76
• Approval: CSA
• Catalog Description: COPPER TWO-WAY SPLICE - HEAVY-DUTY, 250 KCMIL WIRE, TIN PLATED, DIE CODE 76
• Category: Large Terminals & Connectors
• Full Technical Description: Cast Copper Material; Electro Tin Plated Finish; 250 kcmil Cable Size; CSA Approval; 600 V to 35 kV Voltage Rating; 76 Die Index; Ez GROUND[T], Color-Keyed. Brand; Applicable Standard NEC 250-81, NEC 250-91
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Two Way Compression Grounding Connector
• Unspsc: 39121449
• UPC 12 Digit: 786210535135
• SKU Name: t&b 53513

Resources

• Manufacturer Spec Sheet
