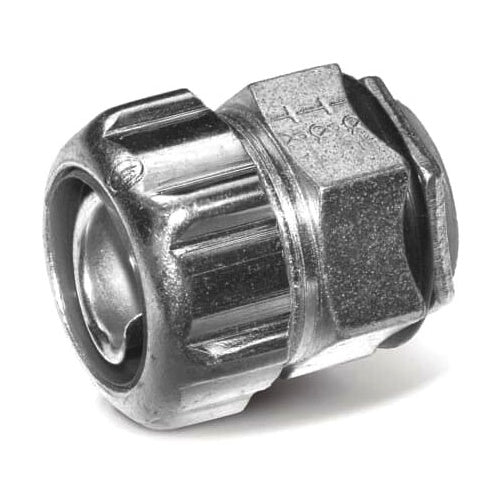

T&B 5366 1-1/2" Str Chase Liquidtight Insulated Connector Iron

Overview

T&B 5366 1-1/2" Str Chase Liquidtight Insulated Connector Iron

Product Specifications

• UPC: 78621005366
• Used On: Liquidtight Flexible Metallic Conduit
• Catalog Number: 5366
• Brand Name: CHASE[R]
• Type: Straight
• Throat Type: Nylon Insulated
• Trade Size: 1-1/2 Inch
• Material: Electro Zinc Plated Chromate Coated Steel Body/Gland/Ground Cone/Locknut, Thermoplastic Sealing Ring/Insulator, Buna-N/Stainless Steel Sealing Gasket
• Standard Package: 10
• Approval: UL 514-B, CSA C22.2
• Catalog Description: 1-1/2 INCH STRAIGHT MALLEABLE IRON CHASE LIQUIDTIGHT INSULATED CONNECTOR WITH ELECTRO-ZINC PLATING
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Straight, Threaded Type; Zinc Electroplated Malleable Iron (Body), Thermoplastic Nylon (Sealing Ring/Insulator), Zinc Plated Steel (Ground Cone) Material; Flexible Metallic Conduit Used on; UL 514B, CSA C22.2, CE Approval; 10 Standard Package; 1-1/2 Inch Trade Size; Insulated Throat Type; CHASE[R] Brand; RoHS Compliant; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III Div 1 and 2; Application Indoor/Outdoor, Hazardous Location; Applicable Standard NEC, NEMA FB-1, Federal Specification A-A-50552; 5300 Model
• Made In Usa: Yes
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Corp.
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 786210053660
• SKU Name: t&b 5366

Resources

• Manufacturer Spec Sheet
